AM30T - Federal Signal Speaker, 30 watts, transformer coupled, swivel mount

AM30T - Federal Signal
AM30T

Price: $283.12
Manufacturer SKU: AM30T
Manufacturer ID: 78297960064



Availability: Usually Ships in 1 to 2 Weeks
Part Number: AM30T
Qty:

Description

AM30T - Federal Signal Speaker, 30 watts, transformer coupled, swivel mount

Overview:

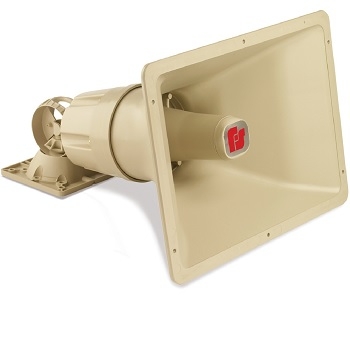

The Federal Signal AM30T is a transformer–coupled, constant directivity, re-entrant speaker ideal for most public address or paging applications. The constant directivity design provides excellent sound coverage throughout the frequency range of speech. The AM30T is molded from impact resistant, beige acrylic-styrene-acrylonitrile (ASA). The omni-directional swivel mount of this speaker allows the unit to be pointed anywhere within a 360 degree half-sphere of area.

Power handling for the AM30T is 30 watts with transformer taps of 30, 15, 7.5, 3.7 and 1.8. A screwdriver operated power switch is used to select the desired tap. This unit is designed for use in 25, 70, and 100Vrms distributed systems.

The driver of the AM30T employs a rugged phenolic diaphragm, a 1.5-inch diameter voice coil, and "rim centered" ferrite magnet structure for long life and durability under extreme operating conditions. A 12-inch connecting cable, phased and color coded, is provided for connecting the AM30T.

The AM30T can be used with the AudioMaster CTS series amplifiers and the AudioRouter to complete an industrial grade public address system.

Features:

  • Transformer Coupled
  • 25, 70, or 100Vrms
  • 30 watt
  • Omni–directional swivel mount
  • Constant directivity horn design
  • Type 3R enclosure

    pdfDownload the AM30T Datasheet in PDF format


    pdfDownload the AM30T AudioMaster Public Address 30 Watt Speaker Instruction Sheet in PDF format
