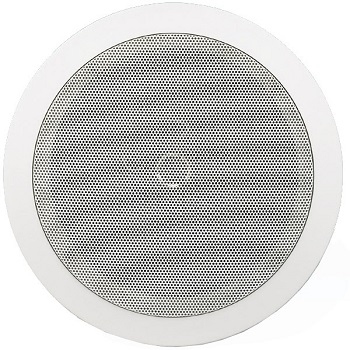

AMR6-2570K - Federal Signal Speaker, 6 Inch round ceiling, 25/70V, includes tile bridge and back box

AMR6-2570K - Federal Signal
AMR6-2570K

Price: $269.76
Manufacturer SKU: AMR6-2570K
Manufacturer ID: 78297922713



Availability: Usually Ships in 1 to 2 Weeks
Part Number: AMR6-2570K
Qty:

Description

AMR6-2570K - Federal Signal Speaker, 6 Inch round ceiling, 25/70V, includes tile bridge and back box

Overview:

The Federal Signal Model AMR6 is a high-quality ceiling speaker for public address and music in industrial, municipal and commercial office environments.

Power handling for the AMR6 is eight watts with transformer taps at 8, 4, 2 and 1 watts. The AMR6-2570K operates in 25 or 70Vrms systems and the AMR6–100K operates in 100Vrms systems.

The speaker is designed to mount flush in a ceiling or wall cavity. Adjustable "L" shaped clamps offer the flexibility of mounting to any surface thickness from 1/4" to 1-1/2". The AMR6 is suitable for use in air handling spaces.

Construction materials were selected to provide years of service in demanding conditions. The speaker frame is flame-retardant ABS that meets Underwriter's Laboratories requirements for Flame Class V-0, 5VA. The speaker cone is constructed of polypropylene and the surround material is a phenolic impregnated cloth, rather than the traditional paper structures.

The AMR6 offers a wide frequency response of 110Hz to 20,000Hz that reproduces a full range of voice, music and electronically generated tones. To achieve these impressive results both a woofer and a neodymium tweeter are utilized. Neodymium is a rare earth metal known for high energy in compact sizes.

Features:

  • Transformer coupled for 25, 70 or 100Vrms systems
  • 8 watt
  • Flexible mounting
  • Back box and tile bridge included

    pdfDownload the AMR6-2570K Datasheet in PDF format


    pdfDownload the AMR6 AudioMaster 8 Watt Ceiling Speaker Instruction Sheet in PDF format
