TM33-SD - Federal Signal Tone module, custom, Series D

TM33-SD - Federal Signal
TM33-SD

Price: $201.56
Manufacturer SKU: TM33-SD
Manufacturer ID: 78297922733



Availability: Usually Ships in 1 to 2 Weeks
Part Number: TM33-SD
Qty:

Description

TM33-SD - Federal Signal Tone module, custom, Series D

Overview:

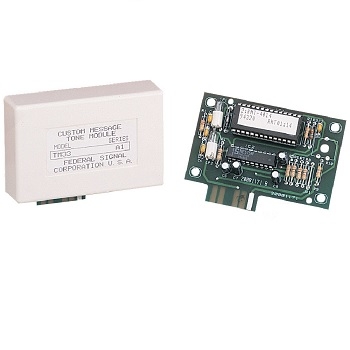

Federal Signal's Model TM33 Digital Tone Module provides audio input for any SelecTone speaker/amplifier. The tone module holds a single pre-recorded voice message, tone or melody.

The user selects from a library of standard pre-recorded messages, tones or melodies, or creates a customized recording.

Each tone module contains a 16-second non-volatile EE-PROM (electronically erasable/ programmable read only memory) chip. The Model TM33 can either be set to play through once and stop or loop continuously.

This solid state digital device will work with Federal Signal speaker/amplifiers (including 50GC, 50GCB, 300GC, 300GCX, 302GC, 302GCX, 300X, 302X, 304GC, 314GC, 304GCX, 314GCX, 304X, and 314X) and the 300VSC-1, 300SCW-1, 300VSC-1044SB SelecTone Command Panels*.

The TM33's digital messaging capabilities are ideal for emergency evacuation announcements. Clear, concise, pre-determined instructions or custom tones can be broadcast.

Manufacturing facilities often require an audible signal to indicate status (i.e. standby, shut down, operational, etc.). Simple pre-recorded melodies can indicate these situations, while voice messages can warn operators.

Many industrial facilities utilize public address systems to broadcast repetitive pre-recorded information. The Model TM33 provides high-quality audio output in these applications.

Federal Signal's TM33 Custom Tone Module provides the user with the option of producing a completely customized digital message, in any language, without paying a "custom" price.

*Not compatible with the EM3 Extension Module

Features:

  • Non–volatile memory
  • Compatible with any SelecTone unit
  • Plug-in installation
  • UL and cUL Listed, CSA Certified

    pdfDownload the TM33-SD Datasheet in PDF format



    pdfDownload the TM33 SelecTone Custom Tone Module Instruction Sheet in PDF format
