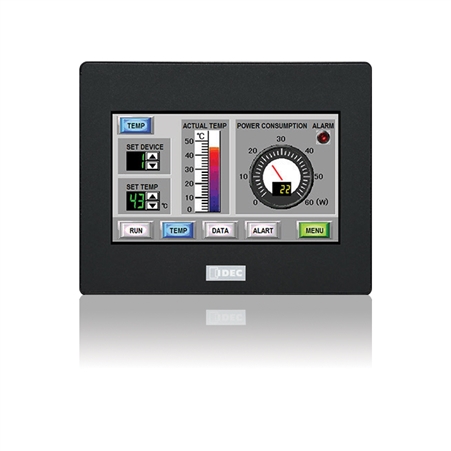

HG1G-4VT22TF-B - IDEC Operator Interface 4.3-inch TFT LCD 65,536 Colors, Touchscreen, Black
The super-bright, compact 4.3-inch HG1G has most of the features and functionalities found in a larger screen, including monitoring and control via PC, tablet or smartphone. It supports multiple protocols simultaneously, FTP Server function and best-in-class LED backlight life of 70,000 hours. HG1G can be mounted in portrait or landscape to fit your needs. It also supports a wide range of operating temperatures from -20 to 55 degrees C, and is rated IP66F/IP67, Type 4X & Type 13, and Class 1 Div 2. It's flexible and small enough to fit in a tight space, and priced to fit a tight budget.
Key Features
- Supports up to four protocols simultaneously
- Remote monitor and control
- FTP Server Function
- Operating temperatures: -20°C to 55°C
- 65,536 colors with 800cd/m2
- 480 x 272 Pixel Resolution
- LED backlight lifespan: >70,000 hours
- Portrait and landscape mounting
- Rated power voltage: 12-24V DC
- Two Serial ports, 2 USB ports and an Ethernet port
- IP66F/IP67F, Type 4X, Type 13, Class 1 Div 2
 Download the HG1G-4VT22TF-B brochure in *.pdf format
Download the HG1G-4VT22TF-B datasheet in *.pdf format
| Display Specifications |
|
Display |
TFT color LCD |
| Color/Shade |
65,536 |
| Effective Display Area |
95.04 W × 53.836 H mm |
| Display Resolution |
480 W × 272 H pixels |
| View Angle |
Right and left 70°, up 60°, down 65° |
| Backlight |
White LED |
| Backlight Life |
70,000 hours *1 |
| Brightness |
800cd/m2 *2 |
| Brightness Adjustment |
32 levels |
| Backlight Replacement |
N/A |
| |
*1 Backlight life refers to time until the brightness reduces by half. It is an expected value after use at 25°C and not guaranteed. Actual backlight life depends on the operating environment and conditions.
*2 Brightness of LCD when operating condition is 25°C. |
| Operation Specifications |
| Switching Element |
Analog resistive membrane |
| Operating Force |
3N maximum |
| Mechanical Life |
1,000,000 operations |
| Acknowledgement Sound |
Electronic buzzer |
| Function Specifications |
| Screen Types |
Base screen, popup screen, system screen |
| No of Screens |
Base screen: 3,000 max. Popup screen: 3,015 max. |
| User Memory |
12MB (including expansion fonts) |
| Parts |
Bit Button, Word Button, Goto Screen,Print Button Key Button, Multi Button, Keypad, Selector Switch, Potentiometer, Numerical Input, Character Input, Pilot Lamp, Multi-State Lamp, Picture Display, Message Display, Message Switching Display, Alarm List Display, Alarm Log Display, Numerical Display, Bar Graph, Trend Chart, Pie Chart, Meter, Calendar, Bit Write Command, Word Write Command, Goto Screen Command,Print Command Screen Script Command, Multi Command,Timer |
| Calendar |
Year, Month, Day, Hour, Min., Sec., Day of Week±90 sec per month (at +25°C) |
| Power Failure Backup Data |
Calendar, log data, keep internal relay, keep internal register |
| Battery |
Recommended replacement time: every 5 years (at +25°C) |
| Interface Specifications |
| Serial Interface 1 (COM 1) *1 |
RS232C |
Electrical Characteristics |
EIA RS232C compliant |
| Transmission Speed |
1200, 2400, 4800, 9600, 19200, 38400, 57600, 115200, 187500 bps |
| Synchronization |
Asynchronous |
| Communication Method |
Half or full duplex |
| Control System |
Hardware control or none |
| RS422/485 |
Electrical Characteristics |
EIA RS422/485 compliant |
| Transmission Speed |
1200, 2400, 4800, 9600, 19200, 38400, 57600, 115200, 187500bps *2 |
| Synchronization |
Asynchronous |
| Communication Method |
Half or full duplex |
| Control System |
None |
| Connector |
Detachable 9-pin terminal block |
| Ethernet Interface (LAN) |
Interface |
IEEE802.3u (10BASE-T/100BASE-TX compliant) |
| Connector |
Modular connector (RJ45) |
| USB Interface (USB1) |
Interface |
USB 2.0 high speed (480Mbps) |
| Connector |
USB Type Mini-B connector |
| USB Interface (USB2) |
Interface |
USB 2.0 Full speed (12Mbps) |
| Connector |
USB Type Mini-A connector |
| |
*1: RS232C and RS 422/485 can be used simultaneously.
*2: 187,500bps available only with SIEMENS SIMATIC S7-300/400 series (MPI port direct connection). |
|
|
|
 |
|
 |
|
|
|
