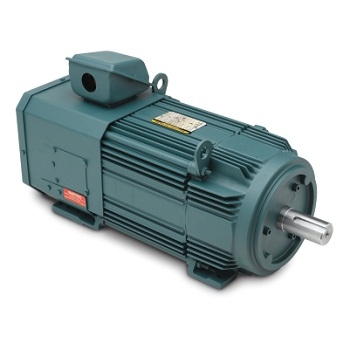

IDDRPM281256 - Baldor 125HP, 1165RPM, 3PH, N/AHZ, 2898, DPG-FV, FOOT, Motor Inverter-Vector Motors
Baldor - IDDRPM281256
IDDRPM281256

Price: $27,143.45
Returnable: NOT RETURNABLE
Manufacturer SKU: IDDRPM281256
Manufacturer ID: 781568465042


Availability: Usually Ships within 24 hours
Part Number: IDDRPM281256
Qty:

Description Documents & Downloads

Please note that this product does NOT qualify for free shipping and may require truck freight.

Applications: Conveyors, extruders, crane and hoist systems, converting pumps, web processing, test stands, traction duty, winders, printing.

Features: Compact square laminated steel frame FL210-L440 (FL180 is extruded aluminum) for inverter duty and vector duty 1000:1 constant torque. Premium class H insulation, 40 C ambient, 1.0 S.F. Ball bearing. Three normally closed thermostats (one per phase). Surpasses the requirements of MG1, Part 31. VP insulation & insulated O.D.E. bearing is standard on all L440 frames. Exclusive optimum pole inverter duty - not for across the line operation.
IDDRPM281256
Additional Product Information
pdfDownload the IDDRPM281256 Data Sheet in *.pdf format
