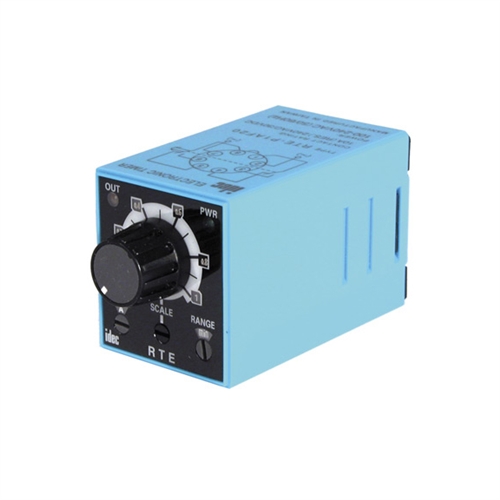

RTE-B2AF20 - IDEC 100 - 240VAC 11B 0.1 Second - 600 Hour Off/Single

RTE-B2AF20 - IDEC
RTE-B2AF20

Price: $54.88
Manufacturer SKU: RTE-B2AF20



Availability: Usually Ships in 3 to 5 Business Days
Part Number: RTE-B2AF20
Qty:

Description Technical Specs

RTE-B2AF20 - IDEC 100 - 240VAC 11B 0.1 Second - 600 Hour Off/Single
Timer Multi Function 10A Contact Delayed DPDT 120-240VAC Blade Plug-In

The RTE Series Family
The new RTE series timers offer the most popular timing functions in 2 models (Power and Signal Triggered) together with high power 10A contacts. In fact, they use our famous RH2 relay, so you can be sure of the reliability. Powered Triggered Models offer standard ON Delay, Interval and Cycle ON & OFF timing functions, while Signal Triggered Models offer 6 distinct timing functions. Both are tubular pin base or .187" quick connect terminals. All models mount into industry standard sockets or standard 45mm square panel cutouts using an optional adaptor.

Key Features
  • 20 time ranges and 10 timing functions
  • Time delays up to 600 hours
  • Space-saving package
  • High repeat accuracy of ± 0.2%
  • ON and timing OUT LED indicators
  • Standard 8- or 11-pin and 11-blade termination
  • 2 form C delayed output contacts
  • 10A Contact Rating
