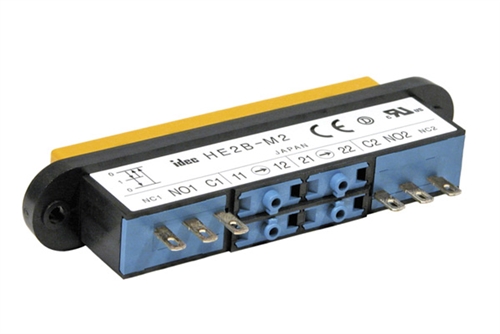

HE2B-M200 - IDEC HE2B-M200, w/o Rubber Cover Enabling Sw (includes 2 nuts)

HE2B-M200 - IDEC
HE2B-M200

Price: $25.32
Manufacturer SKU: HE2B-M200



Availability: Usually Ships in 3 to 5 Business Days
Part Number: HE2B-M200
Qty:

Description Technical Specs

HE2B-M200 - IDEC HE2B-M200, w/o Rubber Cover Enabling Sw (includes 2 nuts)
  • Three position functionality (OFF-ON-OFF)
  • Positive action contacts "On" (position 2) to "Off" (position 3) ensure no contact welding (per EN 60947-5-1 / IEC60947-5-1)
  • Contacts will not close when released from "Off" (pos. 3) to "Off" (pos. 1) (per IEC60204-1 ; 9.2.5.8)
  • Variety of contact configurations (up to two OFF-ON-OFF and two push monitor and two return monitor)
  • Available with or without rubber cover (cover provides IP65 watertight seal)
HE2B redundant, or double basic switches have multiple contacts for extra reliability, and meet all major robotics industry requirements. Off-On-Off functionality provides a high level of safety based on human behavioral studies which determine personnel may squeeze OR let go when presented with a panic situation.

pdfClick to view the HE2B Redundant (Double) Basic Enabling Switch Datasheet in *.pdf format
