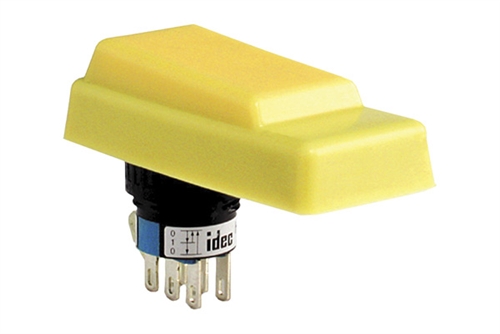

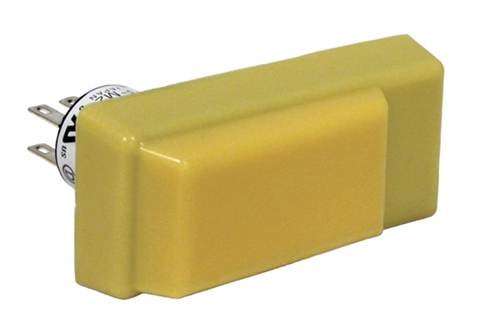

HE3B-M2PY - IDEC HE3B-M2PY, HE3B-M2PY

HE3B-M2PY - IDEC
HE3B-M2PY

Alternative Views:


Price: $25.32
Manufacturer SKU: HE3B-M2PY



Availability: Usually Ships in 3 to 5 Business Days
Part Number: HE3B-M2PY
Qty:

Description Technical Specs

HE3B-M2PY - IDEC HE3B-M2PY, HE3B-M2PY

  • Three position functionality (OFF-ON-OFF)
  • Snap acting contacts from Off - On (position 1 to 2)
  • Contacts will not close when released from "Off" (pos. 3) to "Off" (pos. 1) (per IEC60204-1 ; 9.2.5.8)
  • Available with or without rubber cover (cover provides IP65 watertight seal)

The HE3B enabling switch mounts into a standard 16mm panel cut out, and it has most of the same features as IDEC's other enabling switches. The Off-On-Off functionality provides a high level of safety based on human behavioral studies which determine personnel may squeeze OR let go when presented with a panic situation.

pdfClick to view the HE3B ΓΈ16mm Redundant Contact Switch Datasheet in *.pdf format
