HE5B-M2PB - IDEC HE5B-M2PB, 16mm round 3-pos enabling switch black

Home > Manufacturers > E - J > IDEC > Machine Safety > Enabling & Grip Switches > HE5B Series >

HE5B-M2PB

Price: $25.32

Manufacturer SKU: HE5B-M2PB

Availability: Usually Ships in 3 to 5 Business Days
Part Number: HE5B-M2PB

Qty:

Description

Technical Specs

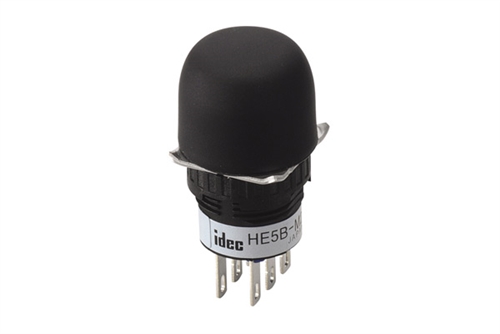

HE5B-M2PB - IDEC HE5B-M2PB, 16mm round 3-pos enabling switch black

Ergonomically-designed OFF-ON-OFF 3-position operation
Easy recognition of position 1 -> 2 transition, made possible by snap action switch
Sufficient load difference is provided for shifting from position 2 -> 3
Light force needed to maintain position 2, so that operators can easily use the enabling switch
The switch does not turn ON when being released from position 3 (OFF when pressed) to position 1 (OFF when released) (IEC60204-1, 9.2.5.8)
Two contacts are provided for safety
IP65 (using the waterproof rubber cover)
Mounts in a 16mm (5/8”) round hole

The HE5B is small, easy to mount and highly reliable. It is ideally suited for use in robotic teaching pendants and complies to major industry regulations. It provides a high level of safety based on human behavioral studies which determine personnel may squeeze OR let go when presented with a panic situation.

Click to view the HE5B ø16mm Redundant Contact Pushbutton Enabling Switch Datasheet in *.pdf format
