LLC24A2F50N - SSAC Liquid Level Drain Dual 120VAC Relay FXD 50K Open Board

Home > Manufacturers > P - S > SSAC > Timers & Flashers > Liquid Level Controls & Alternating Relays > LLC2 Series >

LLC24A2F50N

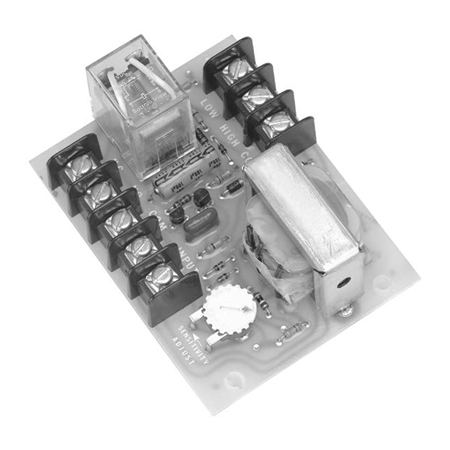

This is a family photo and may not be an accurate representation of the product.

Price: $82.98

Returnable: NOT RETURNABLE
Manufacturer SKU: LLC24A2F50N

Availability: Usually Ships in 3 to 5 Days
Part Number: LLC24A2F50N

Qty:

Description

LLC24A2F50N - SSAC Liquid Level Drain Dual 120VAC Relay FXD 50K Open Board

The LLC2 Series Family

The LLC2 Series is a dual-probe conductive liquid level control designed for OEM equipment and commercial appliance applications. Models are available for fill or drain operation. Transformer isolated 12VAC is provided at the probes to prevent electrolysis. A trickle current of less than 1mA determines the presence or absence of liquid between the probes and common. On adjustable units, the sensitivity adjustment allows accurate level sensing while ignoring foaming agents and floating debris. The LLC2 Series printed circuit board is conformal coated to resist moisture and corrosion.

Operation
Drain (Pump-Down Mode): When the liquid level rises and touches the high probe, the output relay energizes and remains energized until the liquid level falls below the low probe. The output relay then de-energizes and remains de-energized until the liquid again touches the high probe.

Fill (Pump-Up Mode): When the liquid level falls below the low probe, the output relay energizes and remains energized until the liquid level rises and touches the high probe. The output relay then de-energizes and remains de-energized until the liquid level again falls below the low probe.

Features:

Dual probe level control for conductive liquids
Isolated AC voltage on the probes
Adjustable or fixed sensing up to 100K?
Terminal block or quick connect terminals
Fill or drain operation available
24, 120, or 230VAC models are available
Isolated, 10A, SPDT output contacts Approvals:

Auxiliary Products:

Quick connect to screw adaptor: P/N: P1015-18
Electrode: P/N: PHST-38QTN
Threaded probe (24"): P/N: LLP-24
Female quick connect:
- P/N: P1015-13 (AWG 10/12)
- P/N: P1015-64 (AWG 14/16)
- P/N: P1015-14 (AWG 18/22)

Download the The SSAC Product Line catalog in *.pdf format
