Introducing N-Tron's New 716M12 Fully Managed Industrial
Ethernet Switch With IP67 Rated Hardened Metal Enclosure!

N-Tron's New 716M12 IP67 Industrial Ethernet Switch

High Performance for Industrial Applications such as Transportation and Video
Surveillance requiring a Dust-Proof and Temporary Immersion Enclosure.

The benefits of 716M12 & 716M12-HV include:
  • Rugged Industrial Panel Mount Enclosure (optional DIN Rail kit available)
  • Dustproof and protected against low/high pressure water jets
  • Withstands temporary immersion in water
  • Sixteen 10/100BaseTX Ports
  • ESD and Surge Protection Diodes on all Ports
  • Configurable Bi-Color Fault Status LED

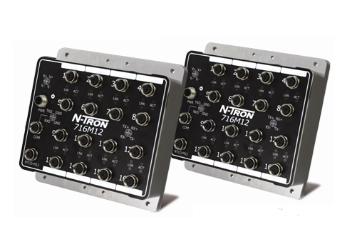

N-Tron's 716M12 and 716M12-HV IP67 Fully Managed Industrial Ethernet Switches
Models:

716M12: Standard model featuring sixteen 10/100BaseTX Ports with M12 D-Coded Female 4 Pin Connectors. This switch features 10-49 VDC Operation and has an operating temperature range of -40ºC to 85ºC. Ideal for use as Ring Manager with ≈30ms Ring Healing.
716M12-HV: High Voltage model featuring sixteen 10/100BaseTX Ports with M12 D-Coded Female 4 Pin Connectors. This switch features 40-160 VDC Operation and has an operating temperature range of -40ºC to 85ºC. Ideal for use as Ring Manager with ≈30ms Ring Healing.

Fully Managed Features:

  • SNMP v1, v2, v3 and Web Browser Management
  • Configuration backup via Optional N-Tron Configuration Device(N-TRON P/N: NTCD-128)
  • Detailed Ring Map and Fault Location Charting
  • N-Ring Technology with ~30ms Healing and N-Link
    Redundant N-Ring Coupling
  • N-View OPC Monitoring
  • EtherNet/IP CIP Messaging
  • IGMP Auto Configuration
  • DHCP Server, Option 82 Relay, Option 61, and IP Fallback
  • Port Trunking and Port Mirroring
  • 802.1AB-2005 LLDP (Link Layer Discovery Protocol)
  • 802.1d, 802.1w, 802.1D RSTP
  • Port Security - MAC Address Based

For more information or to place an order, please give us a call at 800-876-4444 or 203-426-7700. To purchase online please click here.
