PCI-1202U-AE - Advantech CIRCUIT BOARD, 2-port AMONet RS-485 Master Card

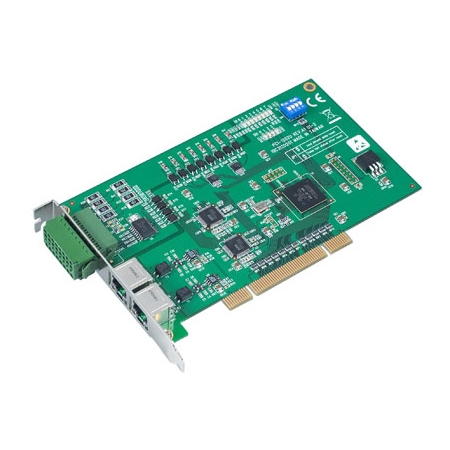

PCI-1202U is a PCI interface card which supports two AMONet RS-485 master rings, and transfers data between host and slaves directly without any operations in between. Each ring can control up to 2048 I/O points, 64 axes, or a combination of I/O points and axes for motion control. The ring can support up to 20 Mbps transfer rate and a maximum communication distance of up to 100 meters.The communication between master and slave is based on a customized RS-485 solution that saves wires, covers a long distance, supports high-speed communication and has time-deterministic features. The communication interface between master and host PC is accomplished by memory mapping. Various functions can be chosen on the slave modules, and standard industrial DIN-rail mounting design makes it easy to distribute them in the field. The master collects information from slave modules and publishes the information to its host PC.
- Max. 20 Mbps transfer rate
- 2 independent AMONet RS-485 Master Rings
- Max. 128 AMONet RS-485 slave modules supported
- Programmable digital input to notify events
- Easy installation with RJ45 phone jack and LED diagnostic
 Download the PCI-1202U-AE brochure in *.pdf format
| General |
Power Consumption |
5 VDC @ 0.5 A typical |
| Connector |
2 x RJ45 |
| Temperature (Operating) |
0 ~ 60°C (32 ~ 140°F) |
| Humidity |
5 ~ 95% RH, non-condensing (IEC 68-2-3) |
| Temperature (Storage) |
-20 ~ 85°C (-4 ~ 185°F) |
| Bus |
Universal PCI V2.2 |
| Certifications |
CE, FCC class A |
| Dimensions |
175 x 100 mm (6.9" x 3.9") |
| Isolated Digital Input |
Channels |
8 |
| Input Voltage |
Dry contact (need external voltage source) |
| Isolation Protection |
2,500 VDC |
| Input Impedance |
2.4 kW @ 0.5 W |
| Isolated Digital Output |
Channels |
4 |
| Output Type |
Open collector |
| Isolation Protection |
2,500 VDC |
| Sink Current |
1 ch: Max. 0.5 A; 4 ch: Max. 1.1 A (total) |
| AMONet RS-485 Motion Control |
AMONet RS-485 |
2 rings |
| Interface |
Half duplex RS-485 |
| Cable Type |
CAT5 UTP/STP Ethernet cable and above |
| Surge Protection |
10 kV |
| Transmission Speeds |
2.5, 5, 10, and 20 Mbps |
| Data Flow Control |
Automatic |
| Communication Distance (Max.) |
100 m @ 20 Mbps w/32 slave modules |
| Slave Module |
Digital I/O, Motion Control, Analog I/O |
|
|
|
 |
|
 |
|
