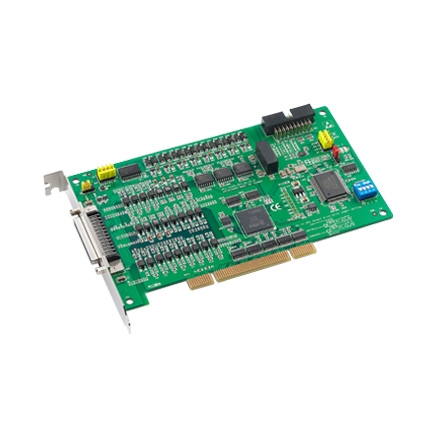

PCI-1220U-AE - Advantech CIRCUIT BOARD, 2-axis Stepping/Pules-type Servo Motor Card
Advantech's PCI-1220U is a 2-axis Universal PCI stepping/pulse-type servo motor control card. This card adopts NOVA MCX312 IC which supports 2-axis motion control with interpolations. Besides, functions like continuous interpolation, programmable T/S-curve acceleration/deceleration, constant speed control are also accomplished. For users that only need to drive two motors at most, PCI-1220U is a cost-effective solution than 4-axis motion control cards. The DLL driver for PCI-1220U together with the utility make it easy for users to test the functionalities of the card and to develop their own application.

Independent 2-axis motion control
Hand wheel and jog function
2-axis linear interpolation function
2-axis circular interpolation function
Continuous interpolation function
Programmable T/S-curve acceleration/deceleration rate
Up to 4 Mpps output for each axis
Two pulse output types: CW/CCW or pulse/direction
Up to 1 MHz encoder input for each axis
Two encoder pulse input types: A/B phase or up/down
Constant speed control
Position management and software limit switch function
BoardID™ switch
