PCI-1784U-AE - Advantech PCI-1784U-AE 4-axis Quadrature Encoder and Counter PCI-bus Card

Home > Manufacturers > A - D > Advantech > Data Acquisition (DAQ) & Control > Data Acquisition Boards > PCI Cards > Isolated Digital I/O >

PCI-1784U-AE - Advantech CIRCUIT BOARD, 4-Axis Quadrature Encoder & Counter Card

PCI-1784U-AE

Price: $399.00

Manufacturer SKU: PCI-1784U-AE

Availability: Usually Ships in 3 to 5 Days
Part Number: PCI-1784U-AE

Qty:

Description

Technical Specs

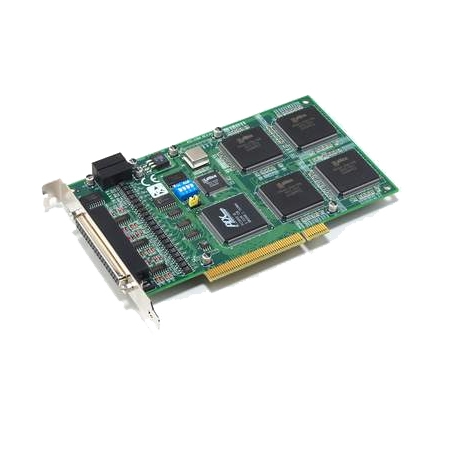

PCI-1784U-AE - Advantech CIRCUIT BOARD, 4-Axis Quadrature Encoder & Counter Card
PCI-1784U is a 4-axis quadrature encoder and counter add-on card for PCI bus. The card includes four 32-bit quadruple AB phase encoder counters, 8-bit timer with multi range .

4-axis Quadrature Encoder and 4-ch Counter Universal PCI Card with 8-ch Isolated Digital I/O

Four 32-bit up/down counters
Single ended or differential inputs
Pulse/direction and up/down counter
x1, x2, x4 counts for each encoder cycle
Optically isolated up to 2,500 VDC
4-stage digital filter with selectable sampling rate
On-board 8-bit timer with wide range time-base selector
Multiple interrupt sources for precision application
4 isolated digital input
4 isolated digital output
BoardID™ switch

Download the PCI-1784U-AE brochure in *.pdf format
