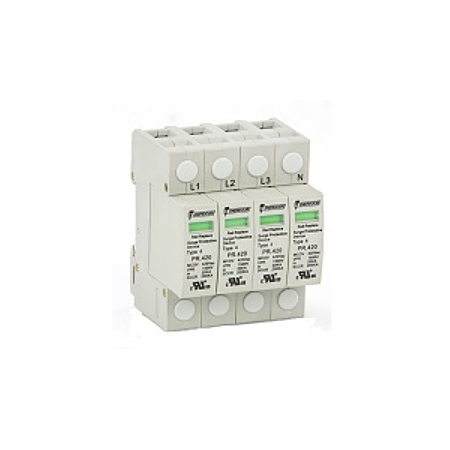

PR-420-4P - Enerdoor PR.420-4P 4-Phase 420VAC
PR-420-4P - Enerdoor
PR-420-4P
Image for illustration purposes only. Actual product may vary from description.

Price: $163.28
Manufacturer SKU: PR.420-4P



Availability: Usually Ships in 3 to 5 Days
Part Number: PR-420-4P
Qty:

Description Technical Specs

PR-420-4P - Enerdoor PR.420-4P 4-Phase 420VAC

General Characteristics
Class Category IEC/VDE II / C
Operating Temperature Range -40°C + 80°C
Operating Humidity Range 0~90%
Response Time L-N (N-PE) ≤25 ns
Backup Fuse (only required if not in the main) 125 Amps gL/gG
Enclosure Material Thermoplastic, UL94 V-0
Mounting 35mm DIN rail according to the EN50022/DIN46277-3 Standard
Max Size of Connecting Wire Single-strand 35mm² (or # 2AWG)
Multi-strand 25mm² (or # 4AWG)
Remote Alarm Contact Type Isolated form C
Switching Capability Un/In AC: 250V/0.5A - DC: 250V/0.1A
Max Size of Connecting Wire Max 1.5mm² (or #16AWG)






pdfDownload the PR-420-4P in *.pdf format
