PR-550 - Enerdoor PR.550 1-Phase 550VAC

Home > Manufacturers > E - J > Enerdoor > Surge Arresters > FINPR Series >

PR-550

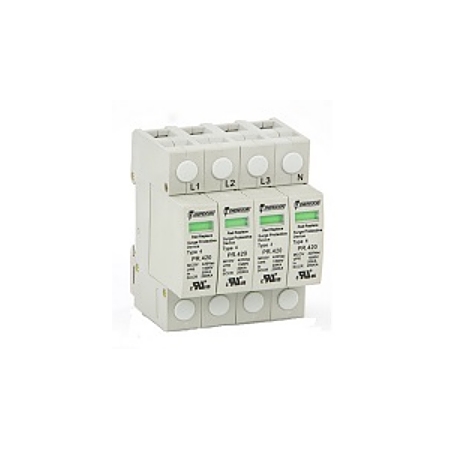

Image for illustration purposes only. Actual product may vary from description.

Price: $43.22

Manufacturer SKU: PR.550

Availability: Usually Ships in 3 to 5 Days
Part Number: PR-550

Qty:

Description

Technical Specs

PR-550 - Enerdoor PR.550 1-Phase 550VAC

General Characteristics
Class Category IEC/VDE	II / C
Operating Temperature Range	-40°C + 80°C
Operating Humidity Range	0~90%
Response Time L-N (N-PE)	≤25 ns
Backup Fuse (only required if not in the main)	125 Amps gL/gG
Enclosure Material	Thermoplastic, UL94 V-0
Mounting	35mm DIN rail according to the EN50022/DIN46277-3 Standard
Max Size of Connecting Wire	Single-strand 35mm² (or # 2AWG) Multi-strand 25mm² (or # 4AWG)
Remote Alarm Contact Type	Isolated form C
Switching Capability Un/In	AC: 250V/0.5A - DC: 250V/0.1A
Max Size of Connecting Wire	Max 1.5mm² (or #16AWG)

Download the PR-550 in *.pdf format
