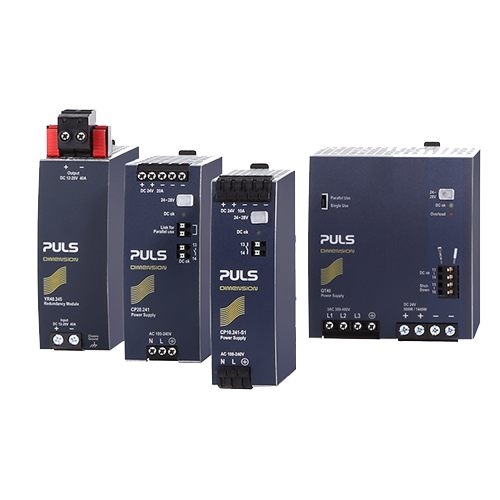

PULS DIMENSION DIN Rail Power Supplies


Sort By:
1 2 3 ... 5
CD10.241 - PULS CD10.241 - PULS DC/DC Converter, 240W, 18-35VDC In, 23-28VDC Out, 10-8.6A Usually Ships in 3 to 5 days
Price: $505.00
CD10.482 - PULS CD10.482 - PULS DC/DC Converter, 240W, 36-60VDC In, 48-56VDC Out, 5-4.3A Usually Ships in 3 to 5 days
Price: $535.00
CD5.051 - PULS CD5.051 - PULS DC/DC Converter, 50W, 18-32VDC In, 5-5.5VDC Out, 10A Usually Ships in 3 to 5 days
Price: $425.00
CD5.121 - PULS CD5.121 - PULS DC/DC Converter, 96W, 18-32VDC In, 12-15VDC Out, 8-6.4A Usually Ships in 3 to 5 days
Price: $445.00
CD5.241 - PULS CD5.241 - PULS DC/DC Converter, 120W, 18-32VDC In, 23-28VDC Out, 5-4.3A Usually Ships in 3 to 5 days
Price: $385.00
CD5.241-L1 - PULS CD5.241-L1 - PULS DC/DC Converter, 92W, 14-32VDC In, 24VDC Out, 3.8A, NEC Class 2 Usually Ships in 3 to 5 days
Price: $485.00
CD5.241-S1 - PULS CD5.241-S1 - PULS DC/DC Converter, 120W, 18-32VDC In, 23-28VDC Out, 5-4.3A with Signal Contacts Usually Ships in 3 to 5 days
Price: $455.00
CD5.242 - PULS CD5.242 - PULS DC/DC Converter, 120W, 36-60VDC In, 23-28VDC Out, 5-4.3A Usually Ships in 3 to 5 days
Price: $435.00
CD5.243 - PULS CD5.243 - PULS DC/DC Converter, 96W, 8-16VDC In, 23-28VDC Out, 4.2-3.4A Usually Ships in 3 to 5 days
Price: $435.00
CP10.121 - PULS CP10.121 - PULS Power Supply, 240W, 100-240VAC 1PH,12-15VDC, 16-12.8A Usually Ships in 3 to 5 Days
Price: $390.00
CP10.122 - PULS CP10.122 - PULS Power Supply, 240W, 100-240VAC 1PH,12-15VDC, 16-12.8A with Extended DC Input Usually Ships in 3 to 5 days
Price: $420.00
CP10.241 - PULS CP10.241 - PULS Power Supply, 240W, 100-240VAC 1PH, 24-28VDC, 10-8.6A Usually Ships in 3 to 5 days
Price: $330.00
CP10.241-C1 - PULS CP10.241-C1 - PULS Power Supply, 240W, 100-240VAC 1PH, 24-28VDC, 10-8.6A with Conformal Coating Usually Ships in 3 to 5 days
Price: $420.00
CP10.241-M1 - PULS CP10.241-M1 - PULS Power Supply, 240W, 100-240VAC 1PH, 24-28VDC, 10-8.6A with Medical Ratings Usually Ships in 3 to 5 days
Price: $400.00
CP10.241-R1 - PULS CP10.241-R1 - PULS Redundancy Power Supply, 240W, 100-240VAC 1PH, 24VDC, 10A with Spring Clamps Usually Ships in 3 to 5 days
Price: $460.00
CP10.241-R2 - PULS CP10.241-R2 - PULS Redundancy Power Supply, 240W, 100-240VAC 1PH, 24VDC, 10A with Plug Connectors Usually Ships in 3 to 5 days
Price: $430.00
CP10.241-R2-C1 - PULS CP10.241-R2-C1 - PULS Redundancy Power Supply, 240W, 100-240VAC 1PH, 24VDC, 10A with Plug Connectors and Conformal Coating Usually Ships in 3 to 5 days
Price: $550.00
CP10.241-S1 - PULS CP10.241-S1 - PULS Power Supply, 240W, 100-240VAC 1PH, 24-28VDC, 10-8.6A with Spring Clamps Usually Ships in 3 to 5 days
Price: $370.00
CP10.241-S2 - PULS CP10.241-S2 - PULS Power Supply, 240W, 100-240VAC 1PH, 24-28VDC, 10-8.6A with Push-In Terminals Usually Ships in 3 to 5 days
Price: $370.00
CP10.242 - PULS CP10.242 - PULS Power Supply, 240W, 100-240VAC 1PH, 24-28VDC, 10-8.6A with Extended DC Input Usually Ships in 3 to 5 days
Price: $370.00
CP10.361 - PULS CP10.361 - PULS Power Supply, 240W, 100-240VAC 1PH,36-42VDC, 6.7-5.7A Usually Ships in 3 to 5 days
Price: $400.00
CP10.481 - PULS CP10.481 - PULS Power Supply, 259W, 100-240VAC 1PH, 48-56VDC, 5.4-4.6A Usually Ships in 3 to 5 days
Price: $390.00
CP20.241 - PULS CP20.241 - PULS Power Supply, 480W, 100-240VAC 1PH, 24-28VDC, 20-17.1A Usually Ships in 3 to 5 days
Price: $500.00
CP20.241-C1 - PULS CP20.241-C1 - PULS Power Supply, 480W, 100-240VAC 1PH, 24-28VDC, 20-17.1A with Conformal Coating Usually Ships in 3 to 5 days
Price: $600.00
CP20.241-R1 - PULS CP20.241-R1 - PULS Redundancy Power Supply, 480W, 100-240VAC 1PH, 24VDC, 20A with Spring Clamps Usually Ships in 3 to 5 days
Price: $690.00
CP20.241-R2 - PULS CP20.241-R2 - PULS Redundancy Power Supply, 480W, 100-240VAC 1PH, 24VDC, 20A with Plug Connectors Usually Ships in 3 to 5 days
Price: $660.00
CP20.241-R2-C1 - PULS CP20.241-R2-C1 - PULS Redundancy Power Supply, 480W, 100-240VAC 1PH, 24VDC, 20A with Plug Connectors and Conformal Coating Usually Ships in 3 to 5 days
Price: $870.00
CP20.241-S1 - PULS CP20.241-S1 - PULS Power Supply, 480W, 100-240VAC 1PH, 24-28VDC, 20-17.1A with Spring Clamps Usually Ships in 3 to 5 days
Price: $540.00
CP20.241-S2 - PULS CP20.241-S2 - PULS Power Supply, 480W, 100-240VAC 1PH, 24-28VDC, 20-17.1A with Push In Terminals Usually Ships in 3 to 5 days
Price: $540.00
CP20.241-V1 - PULS CP20.241-V1 - PULS Power Supply, 480W, 100-240VAC 1PH, 24-28VDC, 20-17.1A with Remote Shutdown Usually Ships in 3 to 5 days
Price: $560.00


1 2 3 ... 5

Highest performance. Numerous variants. Fully featured.

The DIMENSION family unites all the technological achievements PULS has made in the past 35 years. For our customers this means the highest efficiency, longest service life and - of course - the smallest dimensions in the market.

PULS are continuously advancing the DIMENSION family with one goal in mind: To give you reliable and efficient power supplies for your applications. Install them in seconds and don't worry about them for years.

The DIMENSION family includes the widest range of 12 to 48 V DIN rail power supplies. The products are classified in three series: Q , C and X with 1-, 2- or 3-phase input and a power of 80 to 960 W.

Each series assembles various power supply models. Helpful features like DC-OK relay contact, remote shut-down, spring clamps or DC wide-range input and important approvals are available for every series.

This makes the DIMENSION family valuable for every high demanding application.
