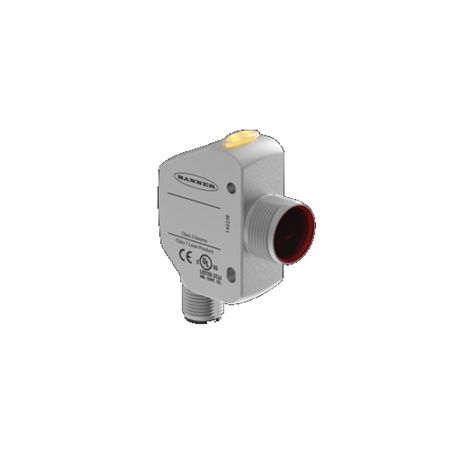

Q4XTBLAF300-Q8 - Banner Engineering Q4X: Laser Distance Sensor Range: 300mm Euro M12 5-Pin Integral Quick Disconnect Bipolar (NPN & PNP) (94118)
Banner’s Q4X is the next generation problem-solving sensor, but it
builds upon and complements existing Banner sensors. The QS18 laser
adjustable field and QS30 expert laser diffuse sensors have been
Banner's go-to, problem-solving products for many years for challenging
part-presence applications. The Q4X expands the types of applications
Banner can solve, by offering a rugged, stainless steel, versatile
sensor that can solve a variety of challenging application and adding
distance-based detection to the product portfolio.
Features
- The ultimate problem solver: reduce sensor inventory with a
reliable, durable sensor that solves the most challenging applications
- Solves difficult distance‐based applications regardless of target
surface reflectivity, including black foam on black plastic, black
rubber in front of metal, multicolor packaging and targets of all colors
- Reliable sensing range of 25 mm (0.98 in) to 300 mm (11.81 in) with best in class excess gain
- Angled four‐digit display with submillimeter resolution is easily viewed from multiple vantage points
- Display provides clear user feedback for easy setup, and bright output indicator provides high visibility of sensor operation
- Intuitive setup utilizing three tactile buttons conveniently located below the display
- Durable and robust construction resists mechanical impact, over tightening and extreme vibration
- FDA grade stainless steel, chemically‐resistant material and laser
marked sensor information withstands aggressive cleaning procedures
- Superior resistance to ambient light interference prevents nuisance output trips under changing lighting conditions
Temperature-compensated design ensures reliable detection during changing temperature conditions
Applications
- Presence/absence
- Part orientation
- Black foam on black plastic
- Shiny package detection
- Multicolor package detection
- Any challenging distance-based application
 Download the Q4X Instruction Manual in *.pdf format
Download the Q4X Quick Start Guide in *.pdf format
Download the Q4X Laser Sensor Sell Sheet in *.pdf format
|
Sensing Beam
|
Visible red Class 1 laser, 655 nm
|
|
Supply Voltage (Vcc)
|
10 to 30 V dc
|
|
Power and Current Consumption, exclusive of load
|
< 675 mW
|
|
Sensing Range
|
300 mm (11.81 in)
|
|
Output Configuration
|
Bipolar (1 PNP & 1 NPN) output
|
|
Output Rating
|
Off-state leakage current: < 5 μA at 30 V dc
PNP On-state saturation voltage: < 1.5 V dc at 100 mA load
NPN On-state saturation voltage: < 1.0 V dc at 100 mA load
|
|
Remote Input
|
Allowable Input Voltage Range: 0 to Vcc
Active Low (internal weak pullup—sinking current):Low State < 2.0 V at 1 mA max.
|
|
Supply Protection Circuitry
|
Protected against reverse polarity, over-voltage, and transient voltages.
|
|
Beam Spot Size
|
Distance: 25, Size (Horizontal x Vertical) 2.6 mm x 1.0 mm
Distance:150, Size (Horizontal x Vertical) 2.3 mm x 0.9 mm
Distance:300, Size (Horizontal x Vertical) 2.0 mm x 0.8 mm
|
|
Temperature Effect
|
0.05 mm/°C at 125 mm
0.35 mm/°C at 300 mm
|
|
Response Speed
|
User selectable:
1.5 milliseconds
3 milliseconds
10 milliseconds
25 milliseconds
50 milliseconds
|
|
Delay at Power Up
|
< 750 ms
|
|
Ambient Light Immunity
|
> 5,000 lux
|
|
Maximum Torque
|
Side mounting: 1 N·m (9 in·lbs)
Nose mounting:20 N·m (177 in·lbs)
|
|
Connector
|
5-pin Euro M12 Integral Connector
|
|
Construction
|
Housing: 316 L stainless steel
Lens cover:PMMA acrylic
Lightpipe and display window:polysulfone
|
|
Vibration
|
MIL-STD-202G, Method 201A (10 to 60 Hz, 0.06
in (1.52 mm) double amplitude, 2 hours each along X, Y and Z axes), with
sensor operating
|
|
Shock
|
MIL-STD-202G, Method 213B, Condition I (100G 6x along X, Y and Z axes, 18 total shocks), with sensor operating.
|
|
Environmental Rating
|
IP67 per IEC60529
IP68 per IEC60529
IP69K per DIN40050-9
|
|
Chemical Compatibility
|
Compatible with commonly used acidic or caustic cleaning and disinfecting chemicals used in equipment cleaning and sanitation.
Compatible with typical cutting fluids and lubricating fluids used in machining centers.
|
|
Operating Conditions
|
Temperature: −10 °C to +55 °C (+14 °F to +131 °F)
Humidity:35% to 95% relative humidity
|
|
Storage Temperature
|
–25 °C to +75 °C (−13 °F to +167 °F)
|
|
Application Note
|
For optimum performance, allow 10 minutes for the sensor to warm up.
|
|
|
|
 |
|
 |
|
