QM42VN6AF150Q - Banner Engineering QM42 Series:Adjustable Field, Range: 150 mm; Input: 10-30V dc, Output: Complementary, NPN, Quick-Disconnect Connector

QM42VN6AF150Q - Banner Engineering
QM42VN6AF150Q

Price: $316.00
Manufacturer SKU: QM42VN6AF150Q
Manufacturer ID: 45689



Availability: Usually Ships in 3 to 5 Business Days
Part Number: QM42VN6AF150Q
Qty:

Description

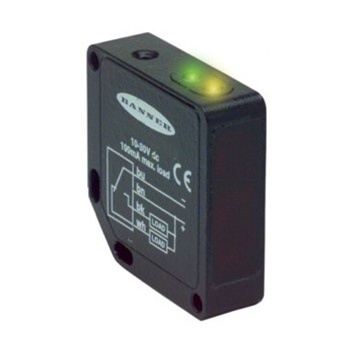

QM42 Series 150 adjustable field sensor with NPN and 4-pin Euro QD.
Sensing Cutoff Point is Adjustable from 50 to 150 mm (2 to 6 in):

  • Adjustable field technology allows direct detection of objects within a defined sensing field, while completely ignoring reflective objects located beyond the sensing field cutoff point
  • Reliable electronic adjustment of sensing field cutoff point from 125 to 400 mm; no mechanical adjustments to worry about
  • Compact, rugged, low cost self-contained sensors in metal die cast housings
  • Epoxy-encapsulated circuitry; leakproof IP67 (NEMA 6) construction for reliable sensing in harsh environments
  • Outstanding electrical noise immunity
  • Dual LED system indicates sensor performance

    • QM42VN6AF150Q
