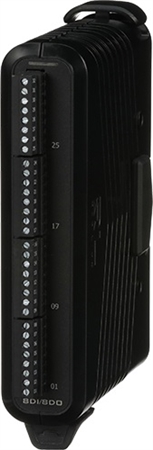

DAM00I0DI0000000 - Red Lion FlexEdge DA Series I/O Module with 8 Digital Inputs and 8 Digital Outputs (DA-M00-I0DI00-00-000)

DAM00I0DI0000000 - Red Lion
DAM00I0DI0000000

Price: $446.00
Manufacturer SKU: DAM00I0DI0000000
Manufacturer ID: DA-M00-I0DI00-00-000

Quantity in Stock:25


Availability: Usually Ships in 3 to 5 Days
Part Number: DAM00I0DI0000000
Qty:

Description

DAM00I0DI0000000 - Red Lion FlexEdge DA Series I/O Module with 8 Digital Inputs and 8 SSR Outputs (DA-M00-I0DI00-00-000)

The 8DI/8DO module is designed for use with the FlexEdge DA70 controller, and features 8 Digital Inputs and 8 SSR Outputs. The module is an ideal choice for monitoring contact or sensor inputs and actuate relays, solenoids, PLC inputs, etc.

The Digital Inputs accept DC inputs or contact closures and are software configured for Sink or source signals. Each input also offers it’s own select able input filter, as well as high or low-active input setting. The Digital Outputs are capable of switching up to one amp each.

FEATURES
  • 8 Digital Inputs and 8 SSR Outputs
  • Inputs Feature Individual Sink/Source Configuration
  • Outputs are Sinking with Max of 1A per Channel
  • Offers Complete Isolation; Inputs, Outputs, Power, and Communication
  • Hot Swap able with Zero Configuration
  • UL Class 1, Division II Certification and ATEX/IECEx approvals
