SC 10 Series Compact Safety Controller / Relay Hybrid


SC10 SERIES SAFETY CONTROLLERS ADD IN-SERIES DIAGNOSTICS

Safety Controller Provides Easy Access to Device-Level Data to Increase Equipment Uptime

Simplify complex safety systems and build-in advanced features and diagnostic capabilities
to your equipment while achieving the highest levels of safety. SC10 Series safety
controllers offer intuitive operation, versatile IO capabilities, and industrial Ethernet
connectivity. The addition of In-Series Diagnostics (ISD) to the SC10 makes it easy
to access health, performance, and process data from each device connected to
the safety controller.





Sort By:
1

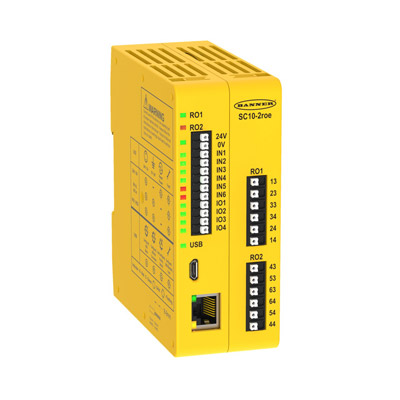

SC10-2ROE - Safety Controller Banner Engineering SC10-2ROE - Banner Engineering Safety Controller

SC10-2ROE - Banner Engineering SC10-2ROE Safety Controller; 10 Inputs 2 Relay Outputs (3 NO, 6 Amp each); Terminal LEDs; 4 Convertible Inputs; Push-in Spring Clamp Terminals; 24 V dc; 240 to 580 mA (806222)

Usually Ships in 3 to 5 Days
Price: $450.00


1

Overview

  • In-Series Diagnostics (ISD) provides detailed status and performance data from each connected safety device which can be accessed with an HMI or similar device
  • Intuitive, icon-based programming with drag-and-drop PC configuration simplifies device setup and management
  • Supports a wide range of safety devices, eliminating the need to buy and stock safety relay modules dedicated to specific safety devices
  • Two safety six amp relay outputs each with three N.O. sets of contacts
  • Ten inputs, including four that can be used as non-safe outputs
  • Automatic Terminal Optimization (ATO) can increase inputs from 10 up to 14
  • Industrial Ethernet two-way communication enables 256 virtual non-safe status outputs and 80 virtual non-safe inputs (reset, on/off, cancel off-delay, mute enable)
  • SC-XM3 external drive for fast swap and quick configuration without a PC
