*Actuators must be ordered separately*

The Series AZ15/16 is designed for use with movable machine guards/access gates which must be closed for operator safety. Their positive-opening NC contacts provide a significantly higher level of safety than conventional springdriven switches whose contacts can weld or stick shut. And their tamper-resistant design prevents bypassing with simple tools, bent wires or other readily available means. Their IP67 rating makes them ideal for interlocking safety guards in hostile environments.

Specifications:
• Thermoplastic enclosure
• Double-insulated
• Long life
• 52 mm x 75 mm x 30 mm
• Multiple coding
• Large wiring compartment
• High level of contact reliability with low voltages and currents
• Slotted holes for adjustment, circular holes for location
• Not sensitive to dirty conditions by virtue of patented roller system

Click to View the Schmersal AZ15ZVK Data sheet in *.pdf format

Click to View the Schmersal AZ15/16 Spec sheet in *.pdf format

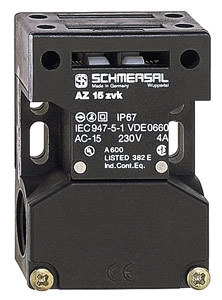

AZ15ZVK
