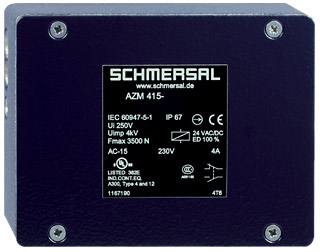

AZM415-11/02ZPK 24 VAC/DC - Schmersal Solenoid latching keyed interlock - power-to-unlock ( 101194497 )

AZM415-11/02ZPK 24 VAC/DC - Schmersal
AZM415-11/02ZPK 24 VAC/DC

Price: $1,008.00
Manufacturer SKU: AZM415-11/02ZPK 24 VAC/DC
Manufacturer ID: 101194497



Availability: Usually Ships in 3 to 5 Business Days
Part Number: AZM415-11-02ZPK
Qty:

Description

Schmersal AZ415 keyed interlock; Actuator sold separately; 3 Opener (NC) / 1 Normally open contact (NO); Power to unlock; 24 VAC/DC

*Actuators must be ordered separately.*

The AZ415 Series has positive-opening NC contacts that provide a significantly higher level of safety than conventional springdriven switches whose contacts can weld or stick shut. And their tamper-resistant design prevents bypassing with simple tools, bent wires or other readily available means.

• Metal enclosure
• Interlock with protection against incorrect locking.
• Robust design
• Long life
• 2 cable entries M 20 x 1.5
• Cut clamp termination
• Adjustable ball latch to 400 N
• 2 switches in one enclosure
• Problem-free opening of stressed doors by means of bell-crank system
• Ex version available
• 130 mm x 100 mm x 46,5 mm

pdfClick to View the Schmersal AZM415-11-02ZPK Data sheet in *.pdf format

pdfClick to View the Schmersal AZ415 Catalog in *.pdf format
