DS1 Series

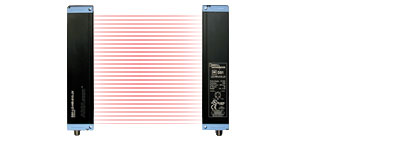

The DS1 AREAscan™ sensor is a compact multibeam light grid suitable for detection and measurement of objects with different shapes and sizes. DS1 is available with 100mm height, 5mm resolution and an operating distance of 2.1m.

  • Position and dimension measurement
  • 5mm resolution and 1ms response time
  • 100 to 300mm height
  • Operating distance up to 2.1m
  • PNP digital and 0-10V analog outputs
pdfClick to view the DS1 AREAscan Series data sheet in *.pdf format
