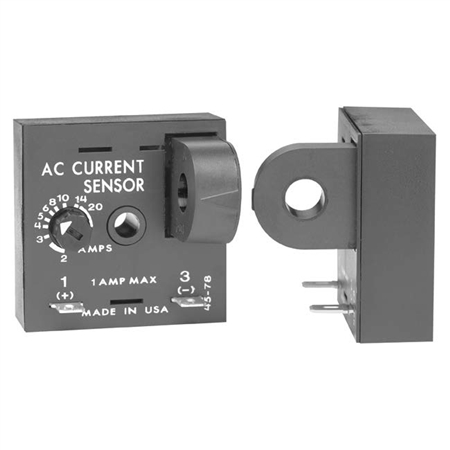

TCSGAB - SSAC Current Sensor Adjustable 2 20A NC 3 50VDC 2x2
The TCS Series Family
The TCS Series is a low cost method of go/no go current detection. It includes a solid-state output to sink or source current when connected directly to a standard PLC digital input module. Its normally open or normally closed output can also be used to control relays, lamps, valves, and small heaters rated up to 1A steady, 10A inrush. The TCS is self-powered (no external power required to operate the unit) and available with an adjustable actuation range of 2 - 20A or factory fixed actuation points from 2 - 45A.
Operation
Normally Open: When a current equal to or greater than the actuate current is passed through the toroidal sensor, the output closes. When the current is reduced to 95% of the actuate current or less, the output opens. Normally Closed: When the current through the toroid is equal to or greater than the actuate current, the output opens. When the current is reduced below 95% of the actuate current, the output closes. To increase sensitivity, multiple turns may be made through the TCS's toroidal sensor. The trip point range is divided by the number of turns through the toroidal sensor to create a new range. When using an external CT, select a 2VA, 0-20A output CT rated for the current to be monitored. Select TCS adjustment range 0. Pass one secondary wire lead through the TCS' toroid and connect the secondary leads together.
Features:
- Direct connection to a PLC digital
input module
- 3 to 50VDC, 24 to 240VAC
- 1A steady - 10A inrush
- Actuation Points -
- 2 - 45A (fixed units)
- 2 - 20A (adjustable units)
- NO or NC solid-state output
- Complete isolation between sensed
current & control circuit
Auxiliary Products:
- Female quick connect:
P/N: P1015-64 (AWG 14/16)
- Mounting bracket: P/N: P1023-6
- Quick connect to screw adaptor:
P/N: P1015-18
- DIN rail: P/N: C103PM (Al)
- DIN rail adaptor: P/N: P1023-20
