THD1B410.5S - SSAC Timer Delay-on-Make 120VAC 10A FXD 0.5s 2x2

Home > Manufacturers > P - S > SSAC > Timers & Flashers > Timers > Dedicated > THD1 Series >

THD1B410.5S

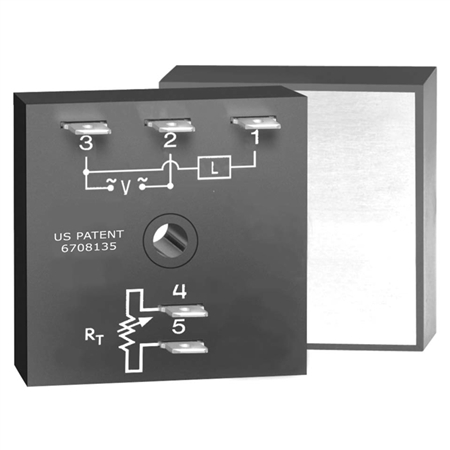

This is a family photo and may not be an accurate representation of the product.

Price: $75.24

Returnable: NOT RETURNABLE
Manufacturer SKU: THD1B410.5S
(Minimum order): 10

Availability: Usually Ships in 3 to 5 Days
Part Number: THD1B410.5S

Qty:

Description

*** The Minimum Order Quantity of this Part is 10.

THD1B410.5S - SSAC Timer Delay-on-Make 120VAC 10A FXD 0.5s 2x2

The THD1 Series Family

The THD1 Series combines accurate timing circuitry with high power solid-state switching. It can switch motors, lamps, and heaters directly without a contactor. You can reduce labor, component cost, and increase reliability with these small, easy-to-use, Digi-Power timers.

Operation (Delay-on-Make):
Upon application of input voltage, the time delay begins. The output is de-energized before and during the time delay. At the end of the time delay, the output energizes and remains energized until input voltage is removed. Reset: Removing input voltage resets the time delay and output.

Features:

High load currents up to 20A, 200A inrush

Fixed or adjustable delays from 0.1s - 1000m

±0.5% repeat accuracy

±1% factory calibration

24, 120, or 230VAC

Metallized mounting surface for heat transfer

Totally solid state & encapsulated

Auxiliary Products:

External adjust potentiometer:

P/N: P1004-95

P/N: P1004-95-X

Female quick connect:

P/N: P1015-13 (AWG 10/12)

P/N: P1015-64 (AWG 14/16)

Quick connect to screw adaptor: P/N: P1015-18

Versa-knob: P/N: P0700-7
