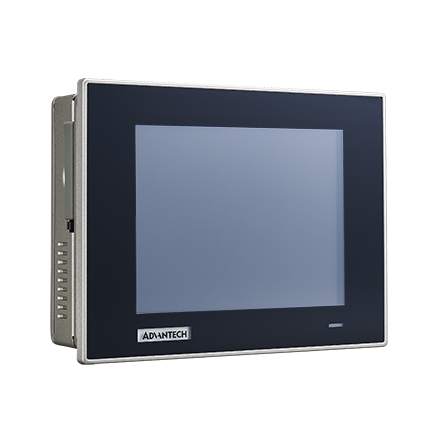

TPC-651T-E3AE - Advantech COMPUTER SYSTEM, 5.7" VGA Touch Panel PC, Atom E3827 1.75 GHz, 4G
Call us today for more information or a quote on a configured system.
With a high quality TPC product line, TPC extends its Touch Panel
Computer family with Intel® Atom™ platform for 5.7", 12.1" & 15".
They are designed with Intel® Atom™ eMenlow XL processor as its core.
The Intel® Atom™ has low power consumption and wide operating
temperature. This system is fanless, slim design and the front bezel is
die-cast Al alloy material. This product also provides a -20 ~ 60°C wide
operating temperature solution and complete isolation protection for
its serial ports. TPC series are durable and reliable platform.
COMPUTER SYSTEM, 5.7" VGA Touch Panel PC, Atom E3827 1.75 GHz, 4G
 Download the TPC-651T-E3AE brochure in *.pdf format
|
Display
|
Type
|
VGA TFT LED LCD
|
|
Viewing Angle (H/V°)
|
160/140
|
|
Backlight Life (hrs)
|
50,000 hrs
|
|
Luminance (cd/m2)
|
550
|
|
Size
|
5.7"
|
|
Max. Resolution
|
640 x 480
|
|
Max. Colors
|
262 K
|
|
Contrast Ratio
|
800:1
|
|
General
|
Power Consumption
|
19.2 W (typical)
|
|
Power Input
|
24VDC +/- 20%
|
|
Watchdog Timer
|
1 ~ 255 sec (system)
|
|
Mounting
|
Desktop, Wall or Panel Mount
|
|
Certifications
|
BSMI, CCC, CE, FCC Class A, UL
|
|
BIOS
|
AMI UEFI |
|
Cooling System
|
Fanless design
|
|
OS Support
|
Microsoft ® WES7 64bit /WE8S 64bit / Windows 7 |
|
Weight (Net)
|
1.5 kg |
|
Enclosure Housing
|
Front bezel: Die-cast Aluminum alloy, Back housing: SECC |
|

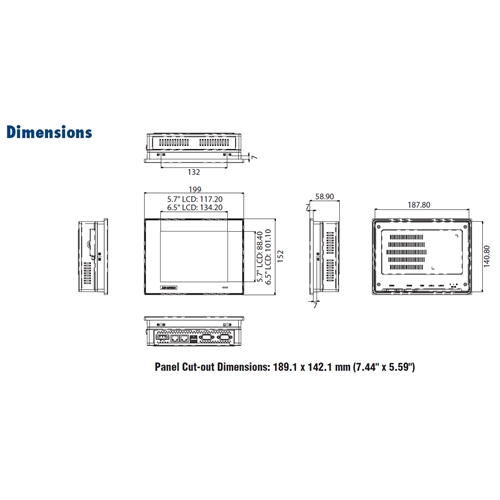

Dimensions
|
199 x 152 x 58.9 mm (7.83” x 5.98” x 2.32”) |
|
System Hardware
|
CPU
|
Intel® Atom™ E3827 1.75 GHz Processor |
|
Memory
|
1 x SO-DIMM with 4GB DDR3L SDRAM (supports up to 8G) |
|
Storage
|
CFast slot x 1, 2.5" SATA SSD slot x 1 (optional) |
|
Expansion Slots
|
Full-size Mini PCI-E |
|
LAN
|
10/100/1000Base-T x 2 |
|
I/O
|
RS-232 x 1, RS-232/422/485 x 1, USB3.0 x 1, USB2.0 x 1 |
|
Environment
|
Ingress Protection
|
Front panel: IP65
|
|
Vibration Protection
|
With CFast: 2 Grms (5~500 Hz), With HDD: 1 Grms (5 ~ 500 Hz) (Operating, random vibration) |
|
Operating Temperature
|
-20 ~ 60° C (-4 ~ 140° F)
|
|
Storage Temperature
|
-30 ~ 70° C (-22 ~ 158° F)
|
|
Humidity
|
10 ~ 95% RH @ 40° C, non-condensing
|
|
Touchscreen
|
Lifespan
|
36 million touches at single point
|
|
Light Transmission
|
Above 75%
|
|
Resolution
|
Linearity
|
|
Type
|
5-wire, analog resistive
|
|
|
|
 |
|
 |
|
|
|
