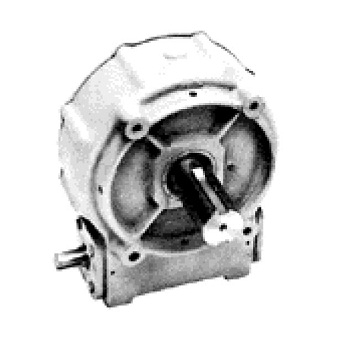

Worm Gear Reducer Model 460 Rugged Cast Iron Housing
Worm Gear Reducer Model 460 Rugged Cast Iron Housing
Worm Gear Reducer Model 460 Rugged Cast Iron Housing

Call to Order!
(800) 876-4444
  • A hardened, ground worm drives the centrifugally cast bronze gear for high efficiency and long life
  • Output torque from 5.431 to 14.183 inch pounds
  • Weight: 65 pounds
  • Cast Iron Gear Also Available
  • Other Shaft Diameters Available

    pdfDownload the Worm Gear Reducer Model 460 Rugged Cast Iron Housing Data Sheet in *.pdf format

    Item Number Ratio Shaft Arrangement and Rotation
    		 Input Specs Output Specs
    460-47 25:1

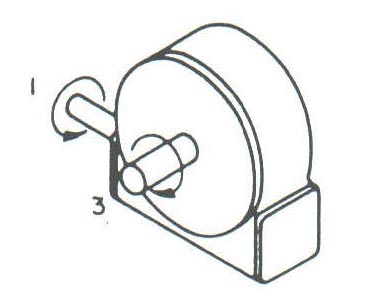

    AR
    Type AR
    		 .36hp@25rpm
    .67hp@50rpm
    1.24hp@100rpm
    3.43hp@350rpm
    4.49hp@540rpm
    6.17hp@1125rpm
    7.46hp@1725rpm     		.23hp
    .44hp
    .86hp
    2.64hp
    3.59hp
    5.21hp
    6.49hp
    Item Number Ratio Shaft Arrangement and Rotation
    		 Input Specs Output Specs
    460-48 25:1

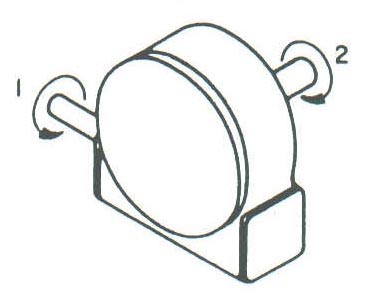

    BR
    Type BR
    		 .36hp@25rpm
    .67hp@50rpm
    1.24hp@100rpm
    3.43hp@350rpm
    4.49hp@540rpm
    6.17hp@1125rpm
    7.46hp@1725rpm     		.23hp
    .44hp
    .86hp
    2.64hp
    3.59hp
    5.21hp
    6.49hp
    Item Number Ratio Shaft Arrangement and Rotation
    		 Input Specs Output Specs
    460-49 25:1

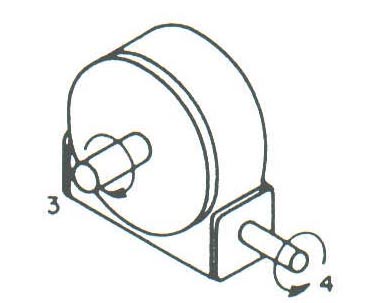

    CR
    Type CR
    		 .36hp@25rpm
    .67hp@50rpm
    1.24hp@100rpm
    3.43hp@350rpm
    4.49hp@540rpm
    6.17hp@1125rpm
    7.46hp@1725rpm     		.23hp
    .44hp
    .86hp
    2.64hp
    3.59hp
    5.21hp
    6.49hp
    Item Number Ratio Shaft Arrangement and Rotation
    		 Input Specs Output Specs
    460-50 25:1

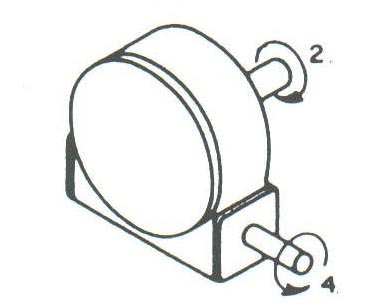

    DR
    Type DR
    		 .36hp@25rpm
    .67hp@50rpm
    1.24hp@100rpm
    3.43hp@350rpm
    4.49hp@540rpm
    6.17hp@1125rpm
    7.46hp@1725rpm     		.23hp
    .44hp
    .86hp
    2.64hp
    3.59hp
    5.21hp
    6.49hp
    Item Number Ratio Shaft Arrangement and Rotation
    		 Input Specs Output Specs
    460-51 25:1

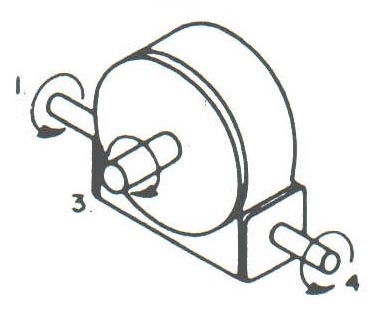

    ER
    Type ER
    		 .36hp@25rpm
    .67hp@50rpm
    1.24hp@100rpm
    3.43hp@350rpm
    4.49hp@540rpm
    6.17hp@1125rpm
    7.46hp@1725rpm     		.23hp
    .44hp
    .86hp
    2.64hp
    3.59hp
    5.21hp
    6.49hp
    Item Number Ratio Shaft Arrangement and Rotation
    		 Input Specs Output Specs
    460-52 25:1

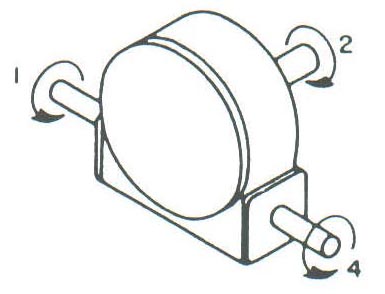

    FR
    Type FR
    		 .36hp@25rpm
    .67hp@50rpm
    1.24hp@100rpm
    3.43hp@350rpm
    4.49hp@540rpm
    6.17hp@1125rpm
    7.46hp@1725rpm     		.23hp
    .44hp
    .86hp
    2.64hp
    3.59hp
    5.21hp
    6.49hp
    Item Number Ratio Shaft Arrangement and Rotation
    		 Input Specs Output Specs
    460-53 25:1

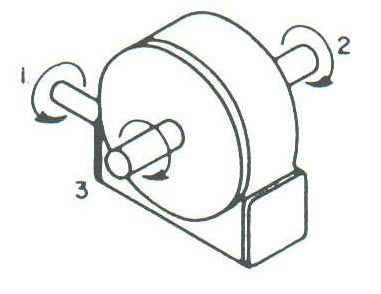

    GR
    Type GR
    		 .36hp@25rpm
    .67hp@50rpm
    1.24hp@100rpm
    3.43hp@350rpm
    4.49hp@540rpm
    6.17hp@1125rpm
    7.46hp@1725rpm     		.23hp
    .44hp
    .86hp
    2.64hp
    3.59hp
    5.21hp
    6.49hp
    Item Number Ratio Shaft Arrangement and Rotation
    		 Input Specs Output Specs
    460-54 25:1

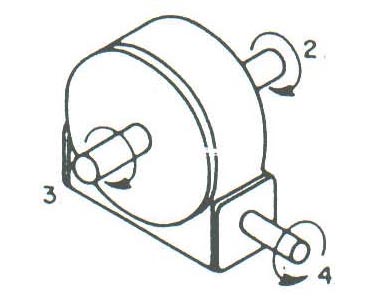

    HR
    Type HR
    		 .36hp@25rpm
    .67hp@50rpm
    1.24hp@100rpm
    3.43hp@350rpm
    4.49hp@540rpm
    6.17hp@1125rpm
    7.46hp@1725rpm     		.23hp
    .44hp
    .86hp
    2.64hp
    3.59hp
    5.21hp
    6.49hp
    Item Number Ratio Shaft Arrangement and Rotation
    		 Input Specs Output Specs
    460-55 25:1

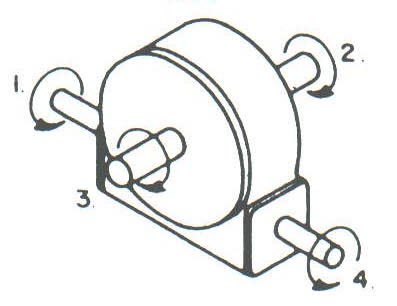

    JR
    Type JR
    		 .36hp@25rpm
    .67hp@50rpm
    1.24hp@100rpm
    3.43hp@350rpm
    4.49hp@540rpm
    6.17hp@1125rpm
    7.46hp@1725rpm     		.23hp
    .44hp
    .86hp
    2.64hp
    3.59hp
    5.21hp
    6.49hp
    Item Number Ratio Shaft Arrangement and Rotation
    		 Input Specs Output Specs
    460-65 50:1
    AR
    Type AR
    		 .24hp@25rpm
    .43hp@50rpm
    .77hp@100rpm
    1.99hp@350rpm
    2.55hp@540rpm
    3.37hp@1125rpm
    3.94hp@1725rpm     		.10hp
    .21hp
    .41hp
    1.23hp
    1.69hp
    2.45hp
    3.02hp
    Item Number Ratio Shaft Arrangement and Rotation
    		 Input Specs Output Specs
    460-66 50:1
    BR
    Type BR
    		 .24hp@25rpm
    .43hp@50rpm
    .77hp@100rpm
    1.99hp@350rpm
    2.55hp@540rpm
    3.37hp@1125rpm
    3.94hp@1725rpm     		.10hp
    .21hp
    .41hp
    1.23hp
    1.69hp
    2.45hp
    3.02hp
    Item Number Ratio Shaft Arrangement and Rotation
    		 Input Specs Output Specs
    460-67 50:1
    CR
    Type CR
    		 .24hp@25rpm
    .43hp@50rpm
    .77hp@100rpm
    1.99hp@350rpm
    2.55hp@540rpm
    3.37hp@1125rpm
    3.94hp@1725rpm     		.10hp
    .21hp
    .41hp
    1.23hp
    1.69hp
    2.45hp
    3.02hp
    Item Number Ratio Shaft Arrangement and Rotation
    		 Input Specs Output Specs
    460-68 50:1
    DR
    Type DR
    		 .24hp@25rpm
    .43hp@50rpm
    .77hp@100rpm
    1.99hp@350rpm
    2.55hp@540rpm
    3.37hp@1125rpm
    3.94hp@1725rpm     		.10hp
    .21hp
    .41hp
    1.23hp
    1.69hp
    2.45hp
    3.02hp
    Item Number Ratio Shaft Arrangement and Rotation
    		 Input Specs Output Specs
    460-69 50:1
    ER
    Type ER
    		 .24hp@25rpm
    .43hp@50rpm
    .77hp@100rpm
    1.99hp@350rpm
    2.55hp@540rpm
    3.37hp@1125rpm
    3.94hp@1725rpm     		.10hp
    .21hp
    .41hp
    1.23hp
    1.69hp
    2.45hp
    3.02hp
    Item Number Ratio Shaft Arrangement and Rotation
    		 Input Specs Output Specs
    460-70 50:1
    FR
    Type FR
    		 .24hp@25rpm
    .43hp@50rpm
    .77hp@100rpm
    1.99hp@350rpm
    2.55hp@540rpm
    3.37hp@1125rpm
    3.94hp@1725rpm     		.10hp
    .21hp
    .41hp
    1.23hp
    1.69hp
    2.45hp
    3.02hp
    Item Number Ratio Shaft Arrangement and Rotation
    		 Input Specs Output Specs
    460-71 50:1
    GR
    Type GR
    		 .24hp@25rpm
    .43hp@50rpm
    .77hp@100rpm
    1.99hp@350rpm
    2.55hp@540rpm
    3.37hp@1125rpm
    3.94hp@1725rpm     		.10hp
    .21hp
    .41hp
    1.23hp
    1.69hp
    2.45hp
    3.02hp
    Item Number Ratio Shaft Arrangement and Rotation
    		 Input Specs Output Specs
    460-72 50:1
    HR
    Type HR
    		 .24hp@25rpm
    .43hp@50rpm
    .77hp@100rpm
    1.99hp@350rpm
    2.55hp@540rpm
    3.37hp@1125rpm
    3.94hp@1725rpm     		.10hp
    .21hp
    .41hp
    1.23hp
    1.69hp
    2.45hp
    3.02hp
    Item Number Ratio Shaft Arrangement and Rotation
    		 Input Specs Output Specs
    460-65 50:1
    JR
    Type JR
    		 .24hp@25rpm
    .43hp@50rpm
    .77hp@100rpm
    1.99hp@350rpm
    2.55hp@540rpm
    3.37hp@1125rpm
    3.94hp@1725rpm     		.10hp
    .21hp
    .41hp
    1.23hp
    1.69hp
    2.45hp
    3.02hp

    For more information, application assistance, or to place an order, please call us at 203-426-7700

    •
