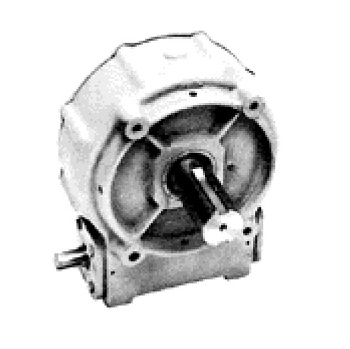

Worm Gear Reducer Model 460 Rugged Cast Iron Housing with SEA 2 Bolt 'A' Flange
Worm Gear Reducer Model 460 Rugged Cast Iron Housing with SEA 2 Bolt 'A' Flange
Worm Gear Reducer Model 460 Rugged Cast Iron Housing with SEA 2 Bolt 'A' Flange

Call to Order!
(800) 876-4444
  • A hardened, ground worm drives the centrifugally cast bronze gear for high efficiency and long life
  • Output torque from 5.431 to 14.183 inch pounds
  • Weight: 65 pounds
  • Cast Iron Gear Also Available
  • Other Shaft Diameters Available

    pdfDownload the Worm Gear Reducer Model 460 Rugged Cast Iron Housing with SEA 2 Bolt 'A' Flange Data Sheet in *.pdf format

    Item Number Ratio Shaft Arrangement and Rotation
    		 Input Specs Output Specs
    460-84 25:1
    AR
    Type AR
    		 .36hp@25rpm
    .67hp@50rpm
    1.24hp@100rpm
    3.43hp@350rpm
    4.49hp@540rpm
    6.17hp@1125rpm
    7.46hp@1725rpm    		 .23hp
    .44hp
    .86hp
    2.64hp
    3.59hp
    5.21hp
    6.49hp
    Item Number Ratio Shaft Arrangement and Rotation
    		 Input Specs Output Specs
    460-85 25:1
    BR
    Type BR
    		 .36hp@25rpm
    .67hp@50rpm
    1.24hp@100rpm
    3.43hp@350rpm
    4.49hp@540rpm
    6.17hp@1125rpm
    7.46hp@1725rpm    		 .23hp
    .44hp
    .86hp
    2.64hp
    3.59hp
    5.21hp
    6.49hp
    Item Number Ratio Shaft Arrangement and Rotation
    		 Input Specs Output Specs
    460-86 25:1
    CR
    Type CR
    		 .36hp@25rpm
    .67hp@50rpm
    1.24hp@100rpm
    3.43hp@350rpm
    4.49hp@540rpm
    6.17hp@1125rpm
    7.46hp@1725rpm    		 .23hp
    .44hp
    .86hp
    2.64hp
    3.59hp
    5.21hp
    6.49hp
    Item Number Ratio Shaft Arrangement and Rotation
    		 Input Specs Output Specs
    460-87 25:1
    DR
    Type DR
    		 .36hp@25rpm
    .67hp@50rpm
    1.24hp@100rpm
    3.43hp@350rpm
    4.49hp@540rpm
    6.17hp@1125rpm
    7.46hp@1725rpm    		 .23hp
    .44hp
    .86hp
    2.64hp
    3.59hp
    5.21hp
    6.49hp
    Item Number Ratio Shaft Arrangement and Rotation
    		 Input Specs Output Specs
    460-88 25:1
    GR
    Type GR
    		 .36hp@25rpm
    .67hp@50rpm
    1.24hp@100rpm
    3.43hp@350rpm
    4.49hp@540rpm
    6.17hp@1125rpm
    7.46hp@1725rpm    		 .23hp
    .44hp
    .86hp
    2.64hp
    3.59hp
    5.21hp
    6.49hp
    Item Number Ratio Shaft Arrangement and Rotation
    		 Input Specs Output Specs
    460-91 25:1
    HR
    Type HR
    		 .36hp@25rpm
    .67hp@50rpm
    1.24hp@100rpm
    3.43hp@350rpm
    4.49hp@540rpm
    6.17hp@1125rpm
    7.46hp@1725rpm    		 .23hp
    .44hp
    .86hp
    2.64hp
    3.59hp
    5.21hp
    6.49hp
    Item Number Ratio Shaft Arrangement and Rotation
    		 Input Specs Output Specs
    460-102 50:1
    AR
    Type AR
    		 .24hp@25rpm
    .43hp@50rpm
    .77hp@100rpm
    1.99hp@350rpm
    2.55hp@540rpm
    3.37hp@1125rpm
    3.94hp@1725rpm    		 .10hp
    .21hp
    .41hp
    1.23hp
    1.69hp
    2.45hp
    3.02hp
    Item Number Ratio Shaft Arrangement and Rotation
    		 Input Specs Output Specs
    460-103 50:1
    BR
    Type BR
    		 .24hp@25rpm
    .43hp@50rpm
    .77hp@100rpm
    1.99hp@350rpm
    2.55hp@540rpm
    3.37hp@1125rpm
    3.94hp@1725rpm    		 .10hp
    .21hp
    .41hp
    1.23hp
    1.69hp
    2.45hp
    3.02hp
    Item Number Ratio Shaft Arrangement and Rotation
    		 Input Specs Output Specs
    460-104 50:1
    CR
    Type CR
    		 .24hp@25rpm
    .43hp@50rpm
    .77hp@100rpm
    1.99hp@350rpm
    2.55hp@540rpm
    3.37hp@1125rpm
    3.94hp@1725rpm    		 .10hp
    .21hp
    .41hp
    1.23hp
    1.69hp
    2.45hp
    3.02hp
    Item Number Ratio Shaft Arrangement and Rotation
    		 Input Specs Output Specs
    460-152 50:1
    DR
    Type DR
    		 .24hp@25rpm
    .43hp@50rpm
    .77hp@100rpm
    1.99hp@350rpm
    2.55hp@540rpm
    3.37hp@1125rpm
    3.94hp@1725rpm    		 .10hp
    .21hp
    .41hp
    1.23hp
    1.69hp
    2.45hp
    3.02hp
    Item Number Ratio Shaft Arrangement and Rotation
    		 Input Specs Output Specs
    460-106 50:1
    GR
    Type GR
    		 .24hp@25rpm
    .43hp@50rpm
    .77hp@100rpm
    1.99hp@350rpm
    2.55hp@540rpm
    3.37hp@1125rpm
    3.94hp@1725rpm    		 .10hp
    .21hp
    .41hp
    1.23hp
    1.69hp
    2.45hp
    3.02hp
    Item Number Ratio Shaft Arrangement and Rotation
    		 Input Specs Output Specs
    460-109 50:1
    HR
    Type HR
    		 .24hp@25rpm
    .43hp@50rpm
    .77hp@100rpm
    1.99hp@350rpm
    2.55hp@540rpm
    3.37hp@1125rpm
    3.94hp@1725rpm    		 .10hp
    .21hp
    .41hp
    1.23hp
    1.69hp
    2.45hp
    3.02hp

    For more information, application assistance, or to place an order, please call us at 203-426-7700

    •
