956 BLOK Housing
Gemco 956 BLOK Housing Option
*** Call, email or live chat today with any questions or to place an order! ***

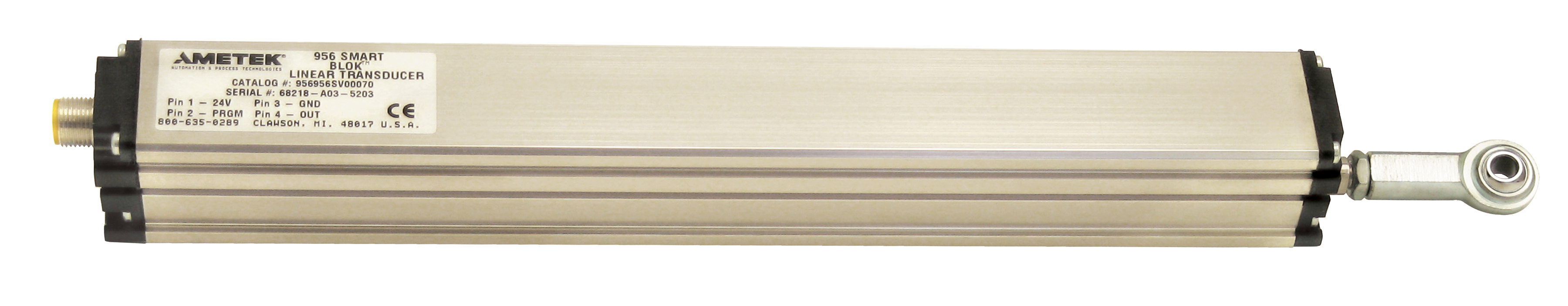

The 956 BLOK is an optional Rod & Barrel style
housing for the 955 BRIK Series of Linear Displacement
Transducers. This housing adds a chamber, magnet and
piston. The streamlined anodized aluminum extrusion
houses the sensing element and electronics. The
piston assembly moves over the sensing element that
determines the position and converts it to a readable
output.
The 956 BLOK is a self-contained unit and does not
have a can or head assembly. All of the electronics are
incorporated in the transducer which is less than 1.5
inches square. Units can be ordered in span lengths up
to 36 inches long in 0.1 inch increments. The piston is
designed to move effortlessly along the transducer. A
variety of hardware is available for attaching the LDT to
the moving portion of the process. All units are provided
with a standard quick disconnect connector.
The transducer can be mounted vertically or horizontally
using mounting feet or optional rod ends. The mounting
feet slide on the extrusion and clamp down when
tightened. This package style provides a compact and
easy method of mounting for machine builders. Typical
span lengths range from 4” to 36”. Consult factory for
other lengths.
The 956 BLOK is designed for applications where
economical continuous feedback is necessary. The
sensor can be a cost effective replacement to limit and
proximity sensors and linear potentiometers. Applications
include presses, blow molding, injection molding,
extrusion, roll positioning, wicket gates and many more.
|
Specifications
|
|
Because the 956 BLOK is an optional housing for the 955, electrical specifications are dependant
on the particular 955 sensor. See the 955 BRIK pages for specifications.
|
|
Approvals
|
CE
|
|
Enclosure
|
IP67 (Optional IP68)
|
|
Specifications are subject to change without notice.
|
|
Specifications for 956LC
|
|
Features
|
No Programmable output, No
diagnostic LED, electronics
sealed to IP67, resolution 0.014”
|
|
Outputs
|
0 to 10 volts or 4 - 20mA
|
|
Stroke
Lengths
|
6 to 36”
|
|
Null Band
|
3.00”
|
|
Dead Band
|
1.5”
|
|
Specifications are subject to change without notice.
|
Specifications for 956S - Smart Brik
| | Features
|
Programmable Zero & Span,
diagnostic Tri-color LED, Electronics
sealed to IP67, IP68
optional, resolution to 0.014" | | Outputs
|
0 to 10 vdc, -10 to +10vdc, 0 to 5
vdc, -5 to +5 vdc or 4 - 20mA | | Stroke
Lengths
|
4 to 36" | | Null Band
|
3.00”
|
|
Dead Band
|
1.5”
|
|
Specifications are subject to change without notice.
|
|
Specifications for 956A - High Resolution |
|
Features
|
Programmable Zero & Span,
diagnostic Tri-color LED, Electronics
sealed to IP67, IP68
optional, resolution to 0.001" | | Outputs
|
0 to 10 volts or 4 - 20mA | | Stroke
Lengths
|
5 to 36" | | Null Band
|
3.00”
|
|
Dead Band
|
2.0"”
|
|
Specifications are subject to change without notice.
|
|
Specifications for 956D - Digital Output |
|
Features
|
Diagnostic Tri-color
LED, Electronics
sealed to IP67, IP68
optional, resolution
equal to controller | | Outputs
|
Controlled Pulse,
Start/Stop, and
PWM with Internal or
external interrogations
and recirculation | | Stroke
Lengths
|
5 to 36”
|
|
Null Band
|
3.00”
|
|
Dead Band
|
2.0" | | Specifications are subject to change without notice.
|
|
Specifications for 956DQ - Quadrature Output |
|
Features
|
Quadrature
output, simulates
incremental
encoders, Burst
output to simplify
homing unit in
event of power loss,
Diagnostic Tri-color
LED, Electronics
sealed to IP67,
IP68 optional | | Outputs
|
Quadrature Output
A+, A-, B+, B-, Z+,
Z -Line Drivers:
5V or Input Power | | Stroke
Lengths
|
5 to 36”
|
|
Null Band
|
3.00”
|
|
Dead Band
|
2.0" | | Specifications are subject to change without notice.
|
 Download the 956 BLOK Housing brochure in *.pdf format.
