Description

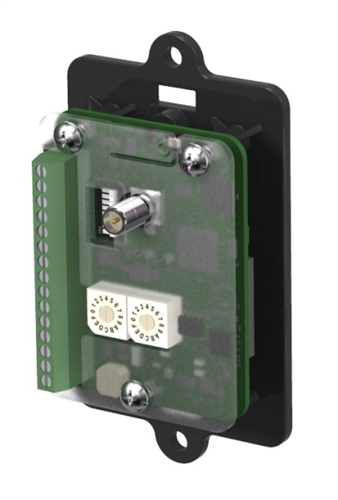

DX80DR9M-HB1 - Banner Engineering DX80 MultiHop 900MHz M-HB1 1W Board; Flex Ext Antenna; In: 2 Disc NPN 2 Anlg 0-20mA; Out: 4 Disc NMOS

SureCross MultiHop embeddable board devices were specifically designed for the needs of industrial users to provide connectivity where traditional wired connections are not possible or cost prohibitive.

  • Wireless industrial module with two sinking discrete inputs, two NMOS discrete outputs, two 0 to 20 mA analog inputs, and two switch power outputs
  • Selectable transmit power levels of 250 mW or 1 Watt for 900 MHz models and 65 mW for 2.4 GHz models
  • FlexPower power options allow for 10 to 30 V dc, solar, and battery power sources for low power applications.
  • Self-healing, auto-routing RF network with multiple hops extends the network's range
  • Serial and I/O communication on a Modbus platform
  • Message routing improves link performance
  • DIP switches select operational modes: master, repeater, or slave
  • Switched power outputs provide 5 to 24 V dc power to external sensors
  • FHSS radios operate and synchronize automatically
