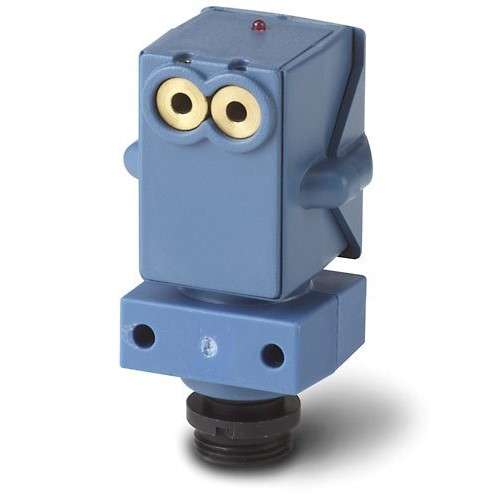

1550B-6507 - Eaton Cutler-Hammer 50 Series, SELF-CONTAINED, 30VDC, CONNECTOR, WITH FIBER OPTIC ADAPTOR

1550B-6507 - Eaton
1550B-6507

Price: $518.27
Manufacturer SKU: 1550B-6507



Availability: Usually 2 - 4 Weeks
Part Number: 1550B-6507
Qty:

Description

For a complete Sensor, order One Logic Module and One Output Module with this Part.

Eaton Cutler-Hammer 50 Series Fiber Optic DC Sensors:

Eaton Cutler-Hammer 50 Series Photoelectric Sensors offer flexibility, durability and high optical performance in a cost-effective self contained package. Choose from four output device modules, four logic function modules, five sensing modes and two types of connection to tailor the sensor to exactly meet your needs. A removable sealed cover allows access to the interchangeable modules.

Sensors are available in thru-beam (opposed mode), reflex (retroreflective), polarized reflex (polarized retroreflective), diffuse reflective and fiber optic sensing modes. Each sensor features a built in swivel bracket for easy mounting and to allow precise adjustment of the sensor alignment.

Features:
  • High optical performance includes 100-foot (30.5m) thru-beam range and 6-foot (1.8m) diffuse reflective range
  • Output options include a 2 Amp SPDT relay
  • All units offer light/dark selection
  • Logic options include time delay, one-shot and motion detection
  • Thru-beam models feature an infrared sensing beam along with a visible red LED behind the lens in the source unit to aid in sensor alignment
  • Fiber optic sensors operate in thru-beam or diffuse reflective mode depending on the fiber optic cable selected
  • Glass fiber optic cables plug into NEMA 4 rated sockets on the front of the sensor. Sockets are leakproof even when the fiber optic cables are not plugged in
  • Fully potted construction for use in areas subject to washdown, high shock and/or vibration
  • Choice of pre-wired power cable or built-in mini-connector versions. Standard pre-wired cable length is 6 feet (1.8m)
  • Built-in, patented, 360 degree rotation, 10 degree tilt ball-swivel base
