HH23-103 - Applied Motion Products NEMA 23 Step Motor with Hollow Shaft 3.11 Length, 325.7 TQ, 3 Series Current

HH23-103 - Applied Motion Products
HH23-103

Alternative Views:
Price: $129.20
Manufacturer SKU: HH23-103



Availability: Usually Ships in 3 to 5 Business Days
Part Number: HH23-103
Qty:

Description Technical Specs

HH23-103 - Applied Motion Products NEMA 23 Step Motor with Hollow Shaft 3.11 Length, 325.7 TQ, 3 Series Current

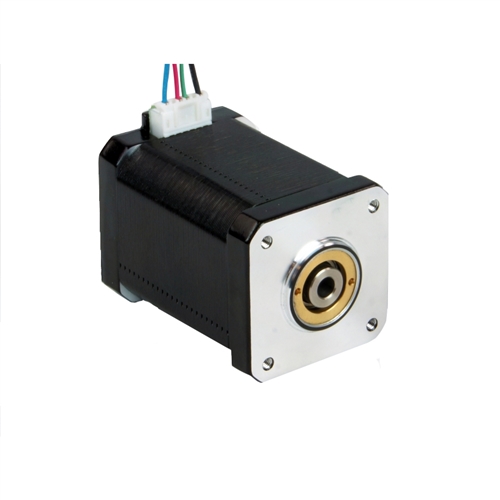

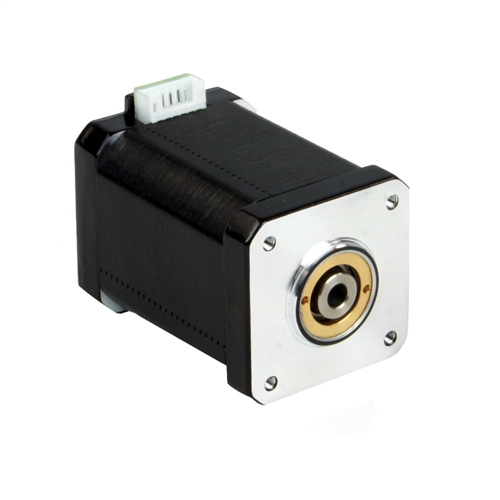

The HH23-103 two-phase stepper motor features a hollow shaft with an 8 mm bore. The hollow shaft allows for the attachment of lead screws and customized shafts without disassembling the motor.

This step motor is suitable for a wide range of motion control applications and is recommended for use with Applied Motion ST5 stepper drives.

Features
  • Hollow shaft for mounting custom shafts or lead screws
  • High torque design
  • 1.8 degree step angle (200 steps/rev)
  • 2-phase step motors
  • NEMA 23 frame size
  • All motors shipped with detachable lead/connector pigtail
pdfDownload the HH23-103 Datasheet in *PDF format
pdfDownload the HH23-103 2D Drawing in *PDF format
pdfDownload the HH23-103 2D Drawing in *PDF format
pdfDownload the HH23-103 Speed-Torque Curves Datasheet in *PDF format
