SC4120A - SSAC Flasher Chase 120VAC 1A 4 Channel Adjustable 30 300Fpm

Home > Manufacturers > P - S > SSAC > Timers & Flashers > Flashers > SC3 / SC4 Series >

SC4120A

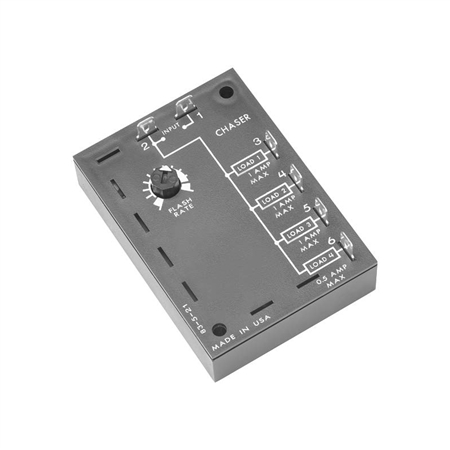

This is a family photo and may not be an accurate representation of the product.

Price: $93.70

Returnable: NOT RETURNABLE
Manufacturer SKU: SC4120A
(Minimum order): 10

Availability: Usually Ships in 3 to 5 Days
Part Number: SC4120A

Qty:

Description

*** The Minimum Order Quantity of this Part is 10.

SC4120A - SSAC Flasher Chase 120VAC 1A 4 Channel Adjustable 30 300Fpm

The SC3 / SC4 Series Family

The SC3/SC4 Series are solid-state 3 or 4 channel, chasers designed for sequential three or four circuit flashing of incandescent lamp loads. Unlike electromechanical chasers, there are no contacts to arc, wear, and eventually fail. Fixed or adjustable rates of 30 to 300 operations per minute.

Operation
Sequential 3 or 4 circuit flashing of incandescent loads with equal time delays for each load. Upon application of input voltage, Load 1 is energized. At the end of the time delay, Load 1 de-energizes and Load 2 energizes. At the end of the time delay, Load 2 de-energizes and Load 3 energizes. This cycle continues until input voltage is removed.
Reset: Removing input voltage resets the unit and cycle.

Features:

Sequential 3 or 4 circuit flashing of incandescent loads

Fixed or adjustable at 30 - 300FPM

1A steady state output

24, 120, or 230VAC input voltage

Totally solid state - encapsulated

Auxiliary Products:

Quick connect to screw adaptor: P/N: P1015-18

Female quick connect:

P/N: P1015-13 (AWG 10/12)

P/N: P1015-64 (AWG 14/16)

P/N: P1015-14 (AWG 18/22)

Download the The SSAC Product Line catalog in *.pdf format
Download the The SC3 / SC4 Series Datasheet datasheet in *.pdf format
